Raspberry Pi SATA HAT: Dual SATA HAT for Raspberry Pi 4

If your Raspberry Pi 4 doesn’t feature enough storage, HAT can help extend the Pi storage using SATA port HDD.  Besides, you only need the Raspberry Pi and HDD powering for a 3.5-inch HDD setup. As a result, your PSU will provide over 65W power with just a 2X3.5-inch HDD. There is so much the Raspberry Pi SATA HAT can help you accomplish. Therefore, we will learn more about it, including its assorted models.

NAS Solutions: Rock Pi SATA HAT



Raspberry Pi 4 and Rock Pi 4 are useful Single-board computers in many applications. ROCK Pi SATA HAT is a hat for Raspberry Pi /Rock Pi 4. It features high performance with high-speed USB3.0 buses and SATA slots.

Dual/Quad SATA HAT

Source: wiki.radxa

Similarly, the Radxa SATA HAT-like solution features a series of SATA expansion that targets the NAS complete solution for ROCK Pi 4 / Raspberry Pi 4. Besides, it comes in three modules, namely;

  • Penta SATA HAT; Usually intended only for ROCK Pi 4 and connected over PCie bus
  • Dual/Quad SATA HAT; usually intended for ROCK Pi 4 / Raspberry Pi 4. It can operate with both boards and connect over two USB 3.0 flash drives.



ROCK Pi SATA HAT: Penta SATA HAT



To ensure it expands up to 5X SATA ports, the Penta SATA HAT employs the M.2/PCIe on ROCK Pi 4. Thus, for the users who may want to use the external disks, the devices adapt one eSATA and four internal SATA making the linking flexible.

Penta SATA HAT

Source: wiki.radxa

Features



  • Support HDD interrupt mode
  • Standard ATX(External) power supply for HDD and ROCK Pi 4
  • Optional OLED display for data and IP Storage
  • 4x SATA + 1x eSATA with power
  • Optional PWM regulator ventilator for transmitting HDD heat
  • Up to 100T storage
  • Support 3.5-inch or 2.5-inch SSD and also up to 5x HDD/SSD
  • Supports software RAID 0/1/5
  • 12V DC power input support for ROCK Pi 4 and 2.5-inch HDD
  • On ROCK Pi 4, it employs two lanes PCle 2.1 buses



HDD drive with SATA cable

HDD drive with SATA cable

Source: Flickr

Performance



JMB585 powers the Penta SATA HAT for rock with double paths 5Gbs buses utilizing 10 Gbps bandwidth. In addition, it can achieve 803MB/s speed once the 5 SSDs are configured in Radio mode.

Raspberry Pi SATA HAT: Dual/Quad SATA HAT



For the ROCK Pi 4 or Raspberry Pi 4, the Dual/Quad SATA HAT top board uses the high-speed USB3.0 buses.

Features



  • Support HDD interrupt mode
  • Optional OLED display for IP storage and Address data
  • Uses dual independent USB3.0 buses
  • 12V DC power input for Raspberry Pi 4 and 2.5 and 3.5 HDD
  • Up to 4X HDD/SSD, 3.5inch or 2.5inch SSD
  • Heatsink and air cooler for Raspberry Pi 4 CPU cooling
  • Type C USB PD/QC power input support for Raspberry Pi 4 as well as 2.5 inches SSD
  • Optional PWM air cooler regulator for executing HDD heat
  • Support USB Attached SCSI Protocol
  • Support software RAID 0/1/5

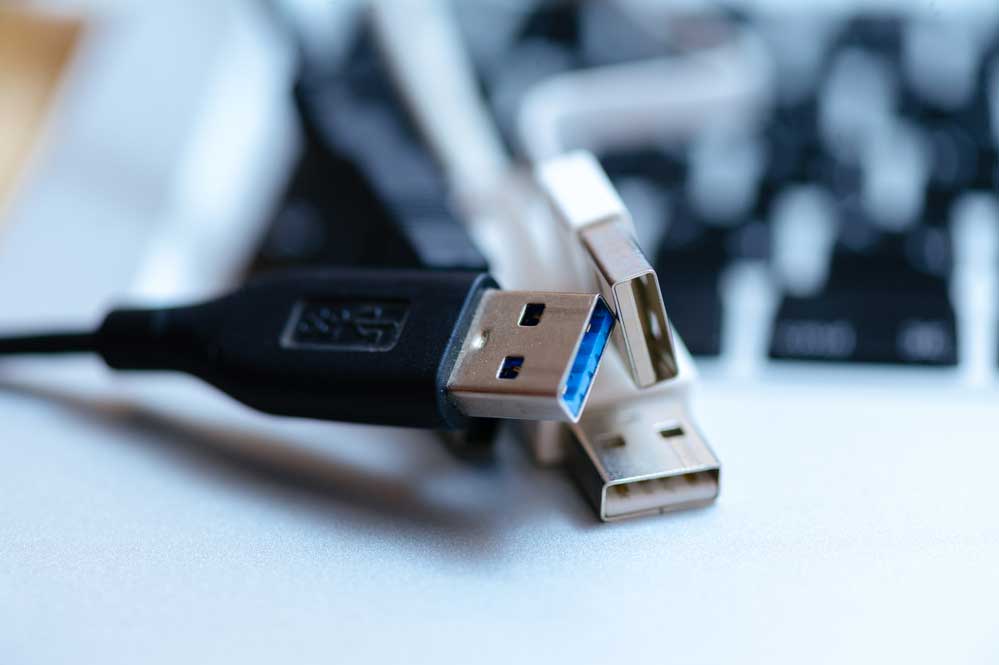

USB connector

USB connector



Performance



USB-powered dual SATA HAT top board exploits high-performing dualistic JMS561. As a result, with its four disks in the RAIDO approach, it offers up to 400MB/s of writing/reading performance.

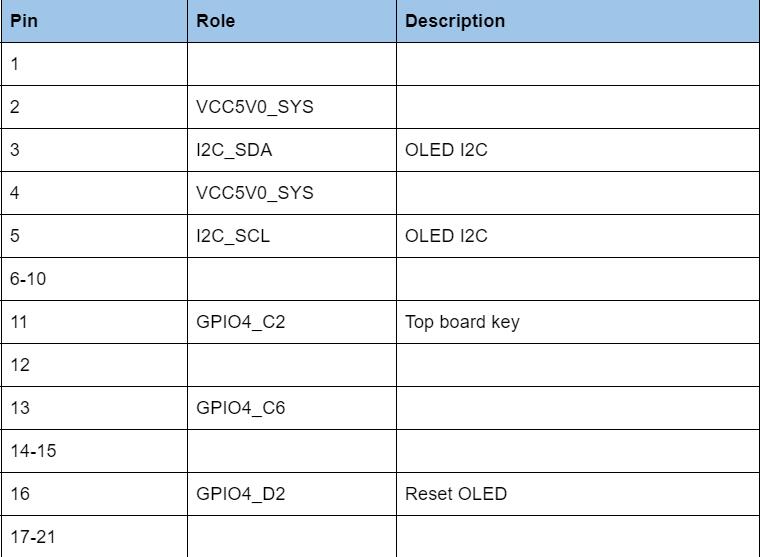

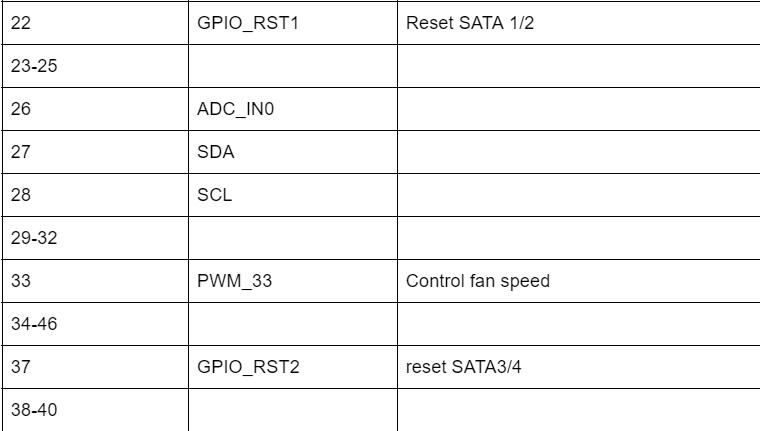

Pinout



PinoutPinout

Case and Software Support for Raspberry Pi SATA HAT



The Case



The optional hat top board comprises a fully metallic case with Raspberry Pi OS, making it attractive. Besides, it supports the upper boards, including four 2.5-inch HDDs.

SATA Hat Case

Source: wiki.radxa

Software Support



Powered SATA HAT features a Debian package for observing and regulating. Likewise, with a simple command, anyone using ROCK Pi 4 or Raspberry Pi 4 can connect the bundle.

Summary



HAT for Raspberry Pi 4 helps to extend Pi storage even up to PD 65W power consumption. Therefore, there is no need to worry if you have a Raspberry Pi lacking sufficient storage. Besides, with a USB/QC power jack adapter, you can power both the Raspberry Pi 4 and the disk drives.
