PCB Panelization: V-Scoring, Tab-Routing, and When to Panelize

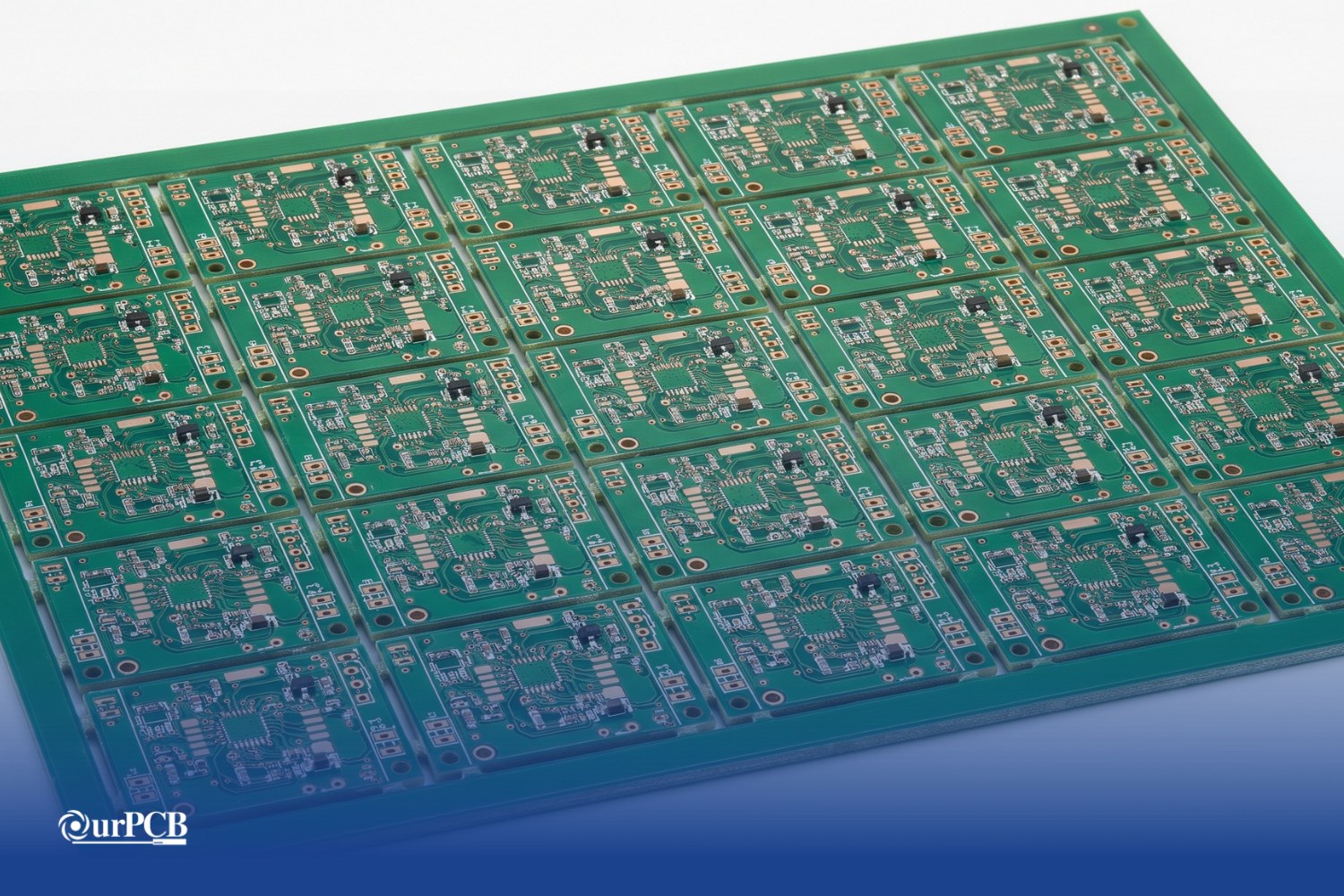

PCB panelization groups individual circuit boards into an array that moves through manufacturing and assembly together. After processing, depanelization separates the finished boards. This approach can simplify handling and improve throughput, but the separation method also affects edge quality, material use, and component reliability.

The right choice depends on your board outline, component placement, production volume, and assembly equipment. A design that saves material can still create expensive damage during separation.

Understanding how your board moves through PCB assembly will shape which panelization approach makes sense. The trade-offs below will help you plan support and separation before releasing your design.

Separation Methods: V-Scoring vs. Tab-Routing vs. Mouse-Bite vs. Solid Tabs

V-scoring and tab-routing define the main approaches. Mouse bites and solid tabs describe how routed boards remain connected before separation.

V-scoring

V-scoring cuts V-shaped grooves into opposite board surfaces, leaving material between them to hold the array together. Depanelization then separates boards along those weakened lines.

Conventional scoring follows straight paths, which makes it useful for rectangular boards with aligned edges. Confirm any interrupted scoring requirements with your fabricator.

Keep copper and components clear of the scoring path. Overhanging connectors can also block the separator's blades.

Use suitable equipment for pre-scored PCB separation after assembly. Uncontrolled hand snapping can bend the board and load nearby components.

Tab-routing

Tab-routing removes material around each board's outline while leaving selected bridges intact. This approach supports curved profiles, cutouts, and outlines that straight scoring can't follow.

Tab placement controls how the board stays supported during assembly. Too few connections can allow movement; poorly positioned connections can concentrate separation forces near sensitive parts.

Plan tool access before placing tabs. A connector or tall component may obstruct the final cut even when the bare-board drawing looks workable.

Mouse-bite tabs

Mouse-bite tabs contain rows of drilled holes that create a perforated break line. They reduce the material connecting the board to its support.

Breaking these tabs leaves small protrusions or scalloped edges. If that edge contacts an enclosure, specify an acceptable finish and any cleanup requirements.

Easy breakaway doesn't mean stress-free separation. Support populated boards and use a controlled removal method when components could suffer from bending.

Solid tabs

Solid tabs retain unperforated laminate between routed sections. For comparable geometry, they ‌provide stronger support than perforated tabs.

A router or suitable tab-cutting tool removes the bridges after assembly. Budget for cutting access, fixturing, and debris control.

Solid tabs suit assemblies that need firm support during processing. Forcing them apart manually, though, can transmit substantial bending loads into the board.

Panel Utilization and Yield

Panel utilization describes how much material becomes finished circuit boards. Yield describes how many boards successfully meet manufacturing and functional requirements.

V-scoring can improve utilization because adjacent boards don't need a routed channel along every shared edge. Tab-routing consumes more material but gives you greater outline freedom.

Neither advantage guarantees the lowest finished-board cost. A tightly packed arrangement may restrict tool access, weaken support, or expose components to separation damage.

We recommend comparing cost per acceptable finished board, including:

• Fabrication and assembly costs.
• Depanelization labor and equipment.
• Edge finishing and cleaning.
• Inspection, rework, and scrap.

For example, a routed arrangement may use more material yet protect expensive populated boards through better support and controlled cutting. That can outweigh the material savings from scoring.

Agree on defective-board handling before assembly starts. The assembler needs a reliable way to identify rejected positions and avoid populating them.

Rail and Fiducial Requirements

Rails are temporary handling strips around the assembly array. They give conveyors and clamps contact surfaces without requiring equipment to grip functional board edges.

They also provide locations for tooling holes, identification, and alignment marks. Confirm the rail arrangement with your assembler before approving fabrication data.

Ask which edges the line grips and where it needs underside support. Keep components, overhangs, and tooling features clear of those contact areas.

Fiducials establish alignment for assembly equipment. These optical targets help machines locate the array and orient placement operations.

Your assembler should specify the required fiducial arrangement. Panel-level marks may need additional board-level or local marks near demanding component footprints.

For dependable recognition:

• Use copper targets with clear surrounding areas.
• Keep solder paste and silkscreen off the targets.
• Prevent clamps and components from obscuring them.
• Confirm requirements for each populated side.

Tooling holes and fiducials serve different purposes. Holes provide mechanical registration; fiducials provide optical references. Confirm whether the process needs both.

Depanelization Stress on Components

Depanelization can damage a board that passed assembly inspection. Bending and twisting transmit forces through the laminate into solder joints and component bodies.

Ceramic capacitors deserve particular attention. Board bending can crack multilayer ceramic capacitors (MLCCs), and component position and orientation affect their exposure to stress.

Keep sensitive parts away from tabs, score lines, and unsupported regions wherever practical. Review component-specific placement guidance instead of applying one universal clearance rule.

We recommend defining the separation process before finalizing component placement. Work through these checks:

• Identify fragile components and mechanically sensitive joints.
• Place tabs where cutting access and support remain available.
• Support the board close to the separation area.
• Check the removal sequence as the array loses stiffness.
• Validate representative populated assemblies before production.

A controlled router can reduce bending compared with manual breaking, although it still requires appropriate support and dust extraction.

Laser depanelization uses noncontact cutting, which avoids mechanical cutting forces. Material compatibility, thermal effects, extraction, and cost still need evaluation.

For demanding assemblies, measure strain during process validation. Electrical testing alone may miss damage that develops into a later failure.

When Not to Panelize

Panelization usually helps when repeated boards benefit from shared handling and automated processing. A multi-board assembly array isn't always the right choice, though.

Consider single-board assembly when:

• You need only a few prototypes. Panel preparation and separation may outweigh handling savings.
• The board already suits the equipment. Individual processing may require little additional handling.
• Components obstruct separation. Edge connectors or tall parts may block practical cutting paths.
• The assembly is mechanically sensitive. Individual fixturing may avoid an unnecessary separation operation.
• The design changes frequently. A dedicated array can add revision work before the design stabilizes.

Single-board assembly doesn't mean the fabricator manufactures each bare board separately. The fabricator may still group boards during fabrication and deliver them individually.

Ask your assembler to compare individual processing, an assembly array, and a reusable carrier where appropriate. Choose the approach that supports reliable production at your expected volume.
