A wire harness organizes wires or cables into planned routes, often with branches. A cable assembly provides a finished, terminated cable connection. Harnesses emphasize system layout across multiple destinations; cable assemblies emphasize the connection between two defined interfaces.
Your build may need distributed wiring, a detachable equipment lead, or both. The right choice depends on connection points, installation space, exposure, and service requirements.
What is the Difference Between Cable and Wire?
A wire is one electrical conductor—solid or stranded—with or without insulation. Several strands can form one conductor; stranded wire isn't automatically a multiconductor cable.
A cable typically combines insulated conductors within an overall construction, often including a jacket or shield. Single-conductor cables also exist, so conductor count alone doesn't establish the difference.
Consider a control cabinet. Individual insulated wires may connect switches, indicators, and terminal blocks. A jacketed cable may carry several signals from that cabinet to an external sensor.
Insulation separates conductive parts electrically. An outer jacket protects the cable mechanically and environmentally, depending on its material and rating. Neither layer automatically provides electromagnetic shielding.
When specifying materials, check voltage, temperature, and permitted use. Appliance wiring material certification addresses wire and cable requirements for intended applications; it doesn't establish universal suitability for every installation.
What is Another Name for a Wire Harness?
Common alternatives include wiring harness, cable harness, and wiring loom. Some suppliers also use wiring assembly or cable assembly broadly, which explains much of the terminology confusion.
For purchasing purposes, the difference between wire harness and cable assembly usually concerns layout and construction. A harness drawing typically emphasizes branch lengths, breakout positions, mounting points, and connector locations.
Imagine one controller connected to a display, fan, switch, and several sensors. A wiring harness arranges those connections around the enclosure instead of leaving installers to position each wire independently.
How do bundling and routing differ?
Bundling holds wires together with ties, tape, lacing, sleeving, or conduit. Routing establishes where those wires travel, where branches separate, and how the assembly fits the equipment.
A useful harness specification addresses both. Tying wires together doesn't define installation clearances, bend locations, or connector orientation.
| Feature | Wire Harness | Cable Assembly |
|---|---|---|
| Main purpose | Organize connections across a system | Provide a finished cable connection |
| Typical layout | Multiple destinations, often with branches | Commonly point-to-point; branching is possible |
| Construction | Wires and cables with ties, sleeves, or other coverings | Cable with connectors, terminals, or other specified terminations |
| Drawing priorities | Branch geometry, routing, mounting, and identification | Cable length, pinout, terminations, and interface requirements |
| Environmental protection | Depends on coverings, seals, and connector selection | Depends on jacket, seals, and connector selection |
| Typical example | Internal appliance wiring | Detachable sensor or equipment lead |
Special Offer: Get $100 off your order!
Email sales@ourpcb.net to get started!
What does Cable Assembly Mean?
A cable assembly is a cable—or group of cables—prepared with specified terminations for an application. It may include connectors, terminals, shielding connections, strain relief, and overmolding.
Examples include an Ethernet patch cord, a coaxial antenna lead, and a battery cable with ring terminals. Their constructions differ because their electrical and mechanical requirements differ. Connector types alone don't define performance: the USB Type-C cable and connector specification covers an entire interface ecosystem, and a matching connector shape doesn't confirm every supported power or data capability.
Does a cable assembly always provide better protection?
No, an overall jacket may protect against abrasion, but it doesn't automatically seal connector interfaces or cable entry points. Overmolding also requires suitable materials and a validated design.
Specify dust and water exposure separately. Ingress protection ratings describe protection against solid objects and liquids under defined test conditions. Check whether the rating applies when connectors are mated, unmated, or fitted with caps.
A protected vehicle harness can withstand demanding conditions; an unsealed indoor cable assembly may not. Select protection features based on the operating environment, not the product category.
What is the Main Advantage of Using a Wiring Harness?
The main advantage is repeatable installation. A harness brings multiple connections into a defined arrangement, reducing the routing and identification work required during equipment assembly.
Predetermined branch lengths help connectors reach their intended locations. Labels support identification, while suitable mounting features keep wiring clear of sharp edges and moving parts.
Those benefits depend on design quality. An incorrectly positioned breakout can pull on terminals or prevent an enclosure from closing. Excessive bundling can also affect heat dissipation.
Service access matters too. Give technicians enough room to disconnect components without removing unrelated wiring. Consider smaller, replaceable sections when one large harness would complicate maintenance.
Our wire harness manufacturing process guide explains how preparation, termination, assembly, and testing turn a drawing into a finished product—useful for production planning once you've confirmed the construction.
Neither option is automatically cheaper. Harness pricing reflects branch complexity and assembly labor; cable assembly pricing can include specialized connectors, shielding, and overmold tooling. Compare total installed cost, including fitting time, inspection, replacement, and expected volume, before deciding on that basis alone.

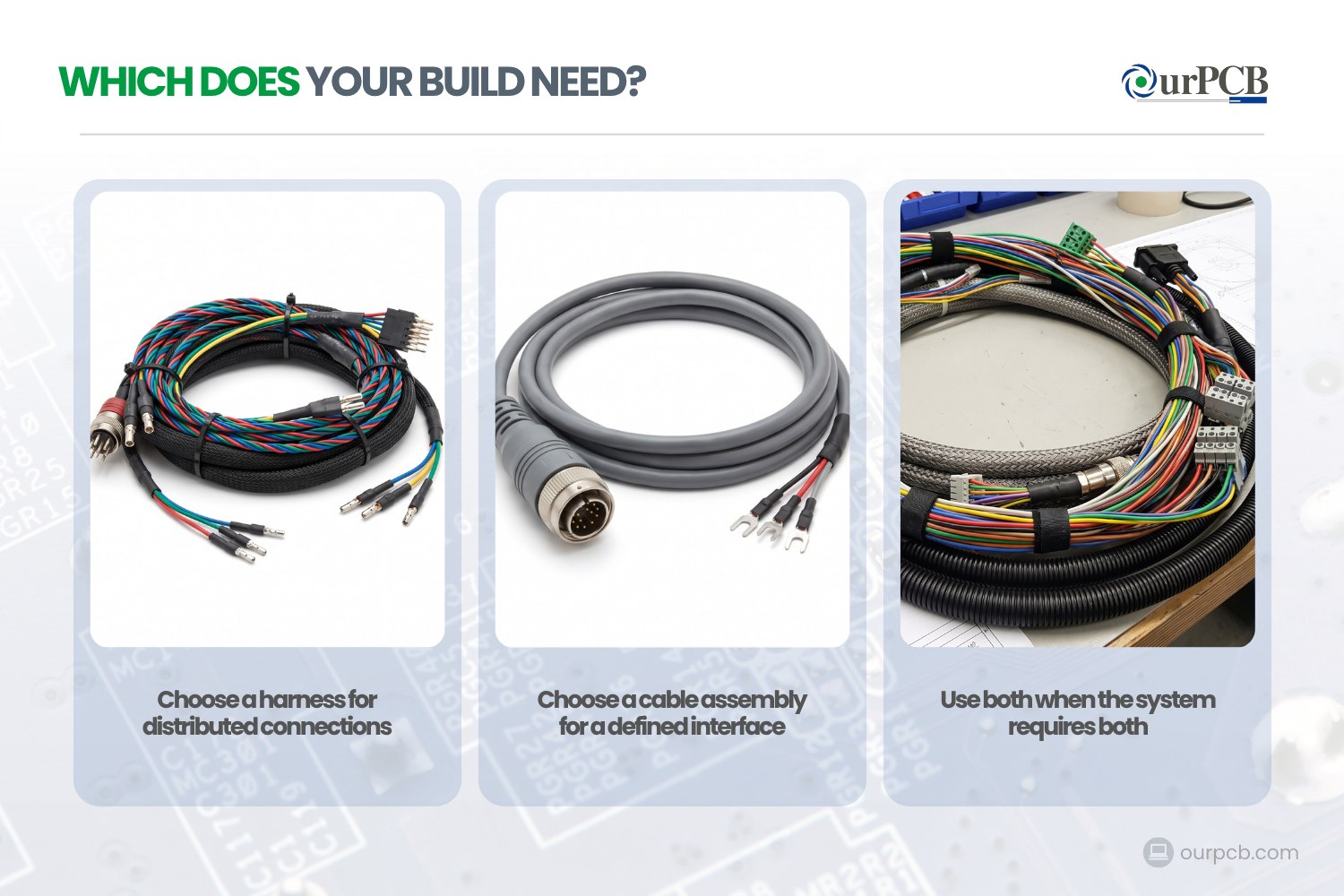

Which does Your Build Need?
Start with the physical layout. Then check the operating conditions and acceptance requirements.
Choose a harness for distributed connections
A harness fits when several components occupy different positions inside a machine, cabinet, or appliance. Define branch lengths, attachment points, connector orientation, and identification clearly.
Choose a cable assembly for a defined interface
A cable assembly fits a finished connection between devices or subassemblies. Specify the cable construction, length, pinout, mating interfaces, and any shielding or sealing requirements.
An external sensor lead illustrates this well. It needs compatible connectors and suitable environmental protection, even when its routing is straightforward.
Use both when the system requires both
Many products combine an internal harness with detachable external cables. A harness can also incorporate finished cable assemblies where particular signals require dedicated cable constructions.
If either label fits, don't force a distinction. We can assess your requirements more accurately from an assembly drawing than from an ambiguous product name.
What should you include in your request?
Send enough information to define the electrical connection and its installed conditions:
- Electrical: pinout, current, voltage, wire size, and signal requirements.
- Mechanical: overall length, branches, tolerances, bend limits, and connector part numbers.
- Environmental: temperature, moisture, chemicals, abrasion, and repeated movement.
- Quality: inspection criteria, electrical tests, traceability, and documentation.
- Commercial: prototype quantity, production volume, and delivery schedule.
Agree on applicable workmanship requirements, such as IPC/WHMA-A-620, before production. Identify the required revision and product class in your documentation.
Where your contract requires it, NASA cable and harness workmanship requirements provide an application-specific reference. Don't assume every project needs aerospace-level requirements.
Define continuity and short-circuit checks, plus any additional tests appropriate to the application. Continuity alone doesn't confirm sealing, crimp strength, or high-speed signal performance.
At OurPCB, we support cable and harness projects around your build requirements. For a finished equipment connection, explore our custom cable assembly and wire harness services. Send us your drawing and operating requirements to discuss the construction and request a quote.
Harness Cable Guide FAQs
What is the difference between cable and wire?
A wire is one conductor, solid or stranded. A cable typically combines conductors within an overall construction, though single-conductor cables also exist.
What is another name for a wire harness?
Wiring harness, cable harness, and wiring loom are common alternatives. Because suppliers sometimes use broader terms, confirm the required layout and construction on the drawing.
What does cable assembly mean?
A cable assembly is a cable prepared with specified terminations for a particular connection. It may also include shielding connections, strain relief, seals, or overmolding.
What is the main advantage of using a wiring harness?
A wiring harness simplifies repeatable installation by organizing multiple connections into planned routes. Defined branches and identification reduce the positioning work required during equipment assembly.
Back to Top: Harness Cable Guide: Wire Harness vs. Cable Assembly - Which Does Your Build Need
