# Clearance and Creepage Distances: Rules and Calculation

In PCB design, equipment safety requirements such as clearance and creepage distances are crucial. These factors help in the smooth operating conditions, possible failure, and other environmental conditions affecting electronics. These conditions are pollution, altitude, humidity, and temperature. As a result, these PCB safety standards come with regulations and clear statements. So, eventually, end-users get the best out of their high-quality products.

Further, you learn all about these safety standards. The primary aim is to limit the hazards of electric shock to humans. In addition, you learn the best insulation methods, ideal insulation materials, and clearance and creepage distance for electronic products.

#### Special Offer: Get \$100 off your order!

Claim your \$100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

## What are clearance and creepage distances?

### What is clearance?

Electrical clearance refers to the shortest distance of air between two conductive materials. It provides adequate isolation against impulse voltage. It is otherwise called transient overvoltages.

Creepage and clearance requirements are related to isolator working voltage due to the possibility of arcing resulting from charge buildup and transfer. This scenario occurs on the device's surface after an extended operation period under high working voltages. Examples of large clearances in voltage circuits involve vibration and applied forces.

(A result of transient overvoltages).

### What is creepage?

Meanwhile, PCB creepage distance is the shortest distance along a solid insulating material's conductive ends. Work out the existing long-term AC voltage in the voltage board to determine PCB creepage distance. To some, it is the basic operating voltage in voltage circuits. To others, it is the rated insulation voltage.

Typically, the requirements for creepage surface distance indicate that it is not below the corresponding clearance. The required clearance is equal to the minimum creepage distance. Also, there is a direct relationship between the minimum creepage distance and the minimum clearance distance in the air.

## Why do we calculate Clearance and Creepage distance?

Apart from isolation for operator safety, it is an important design rule to calculate creepage surface distance and clearance.

• It helps improve product design and the overall safety of mechatronic elements. Hence, industries such as automotive, aerospace, defense, and high-tech electronics receive protection from shock risks.
• Also, it ensures protection from arcing failure and overall circuit damage caused by hazardous voltage.
• You optimize the design process with additional electromechanical safety methods like Creo Clearance and Creepage extension.
• Again, it helps automate a direct digital model analysis and receive visual feedback.
• It reduces production error and reworks.
• Further, it saves time and prototype costs.
• It also helps reduce product recalls and damage to warranty claims.

Apart from isolation for operator safety, it is an important design rule to calculate creepage surface distance and clearance.

## Classes of equipment to protect from electric shock

### Class I equipment

Alongside the basic protection, it gives a vertical barrier for added protective cover. This voltage insulator conducts hazardous breakdown voltage down to the earth. In that case, the external wires link to the conductor's protective earthing when board insulation breaks down.

(An insulating electrical earthing circuit showing ground sign)

### Class II equipment

Acts as a sheet barrier for electric shock protection like Class I equipment. However, it lacks ground protection. Instead, it provides reinforced insulation against electric shock.

### Class III equipment

In this aspect, there are no dangerous voltages as the PCB material has insulation barriers. Therefore, the energy neither causes injury nor pain.

## Important factors in determining distance

The major factors that influence creepage and clearance distance are

• Insulation.
• Input voltage.
• Material group.
• Overvoltage category.
• Pollution degree.
• Altitude.

#### Special Offer: Get \$100 off your order!

Claim your \$100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

## 4.1. Insulation type

Further, the insulation types depend on their different purposes. The standards are

#### Basic insulation.

It provides single-layer insulation for users against electric shocks and electrical breakdowns.

#### Double insulation

Provides basic and supplementary insulation benefits.

#### Functional insulation

It only provides insulation at the conductive points of the equipment.

#### Reinforced insulation

It is a single-layer insulation type that provides double insulation protection properties.

#### Supplementary insulation

In addition to second-layer protection, it protects the user from basic insulation failure.

As for insulation materials in electronic circuits, the major ones are

#### FR-2:

This IC substrate is low-rated insulation against flaming; hence, its name is flame resistant 2. It is built from phenolic material and paper. It is portable and generally reliable for many purposes. Also, it is halogen-free insulation material. However, it is popular among consumer electronics because it is cheap.

#### FR-4:

The FR4 is a higher grade of flame-resistant laminate. It is relatively more popular than FR2 and yet affordable. It is most often used in twofold PCB and multilayer circuit boards. FR4 is also great at withstanding high temperatures in high-voltage design applications.

#### RF:

This substrate insulation material is a mainstay in microwave ovens, military electronic devices, medical devices, etc. RF circuits utilize low dielectric plastic as an insulation barrier.

#### Flex:

As its name implies, the insulation material is for flexible applications such as flex circuits. These circuits rely on tiny flexible plastics for insulation.

#### Metal:

It is awkward to mention the term "metal insulators." However, in this case, it acts as a detector. As such, the metal melts when there are unexpected conductive charges on your PCB. Therefore, causing an open circuit situation and insulating the circuit in the process.

### 4.2. Material Group

To distinguish the different material groups, you need a Comparative Tracking Index. They are

• Material Group 1: 600 ≤ CTI
• Material Group 2：400 ≤ CTI < 600.
• Material Group 3a：175 ≤ CTI < 400.
• Material Group 3b：100 ≤ CTI < 175.

Material group 3b, generally, is a group of unknown materials.

### 4.3.Pollution degree

According to IEC 62368, there are various degrees of pollution.

#### Pollution degree 1

This pollution degree is dry and non-conductive. These include moisture and dust that enter through the sealed packages of subassemblies, components, and equipment.

#### Pollution degree 2

Here, non-conductive pollution happens unless there is condensation. Often, it is common in general laboratories and office environments.

#### Pollution degree 3

This type involves conductive pollution. Otherwise, an expected condensation induces non-conductive pollution. It happens among factory equipment.

### 4.4. Overvoltage category

Knowing the device overvoltage category is important before connecting to the power supply. In addition, determine the device's transient voltage in connection to its input terminals.

#### Overvoltage category 1:

The first category helps limit power transients.

#### Overvoltage category 2:

This category enables safe pluggable equipment via the building wiring.

#### Overvoltage category 3:

The equipment and building wiring are crucial to knowing the overvoltage category here.

#### Overvoltage category 4:

Here, the main power supply in the building connects the conductive paths to equipment directly.

### 4.5. Altitude

The ideal altitude requirement for equipment clearance is below 2KM above sea level. Otherwise, you must multiply the different altitude correction factors by the obtained clearances.

See the IEC 62368-1 table for the PCB creepage and clearance base factors.

## The example of distance calculation

The basic insulation distance differs between the power converters' primary and secondary sides. A good example is the AC/DC converter with an input voltage of 100-240Vac. The table below helps calculate the shortest path for creepage and clearance distance for insulation.

## Measurement of creepage distances and clearances

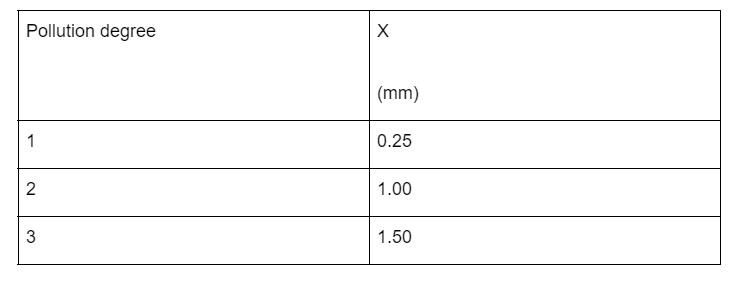

There are many examples of creepage and clearance distance measurements. Normally, you compare the value of X to the pollution degree. But ignore the groove or gap width if it goes below X mm. However, if it equals or exceeds Xmm, measure the creepage distance along the groove contour.

(PCB with a V-groove contour).

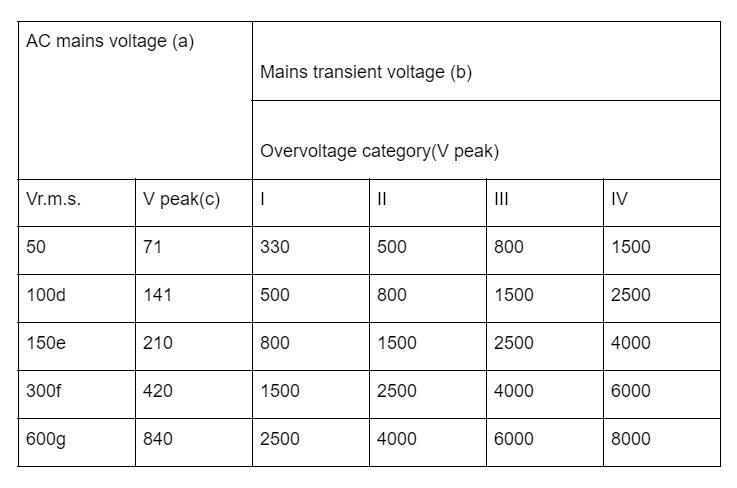

Table of IEC 62368-1 standard
