Professional engineer review; strict quality control for each process.

Advanced Testing Technology To Ensure the Quality such as AOI Test, E-Test, X-RAY, Impedance Control.

We committed to helping customers get the highest quality products and services with competitive prices (especially multilayers PCBs).

about ALUMINUM PCBs

These PCBs are layered with silkscreen, solder mask, and copper. They also come in a metal substrate to replace the fiberglass material, typically used on other types of boards.

The base material of aluminum PCB comes with the regular FR4 and an aluminum core. These boards are usually a solution for tight-tolerant or high power devices because it has great heat conduction abilities that make them less susceptible to thermal expansion than other materials like copper.

Hence, the aluminum PCB comes with a thermal layer that is clad and efficiently dispels heat. In summary, it helps to cool down components and increases electronic devices’ performance.

ALUMINUM PCBS BENEFICIAL

The aluminum in your electronics can help you with heat dissipation and minimize the adverse effects on circuitry. Compared to fiberglass or ceramic, it has great durability and strength that will not allow for any degradation of electronic appliances.

Environmentally Friendly

  • One remarkable feature of aluminum is its recyclable nature, and it’s non-toxic. Hence, using the metal for production promotes energy conservation thanks to its ease of assembly.

Light-weight

  • Aluminum PCBs are quite durable and lightweight metals. Plus, the metal contributes to the resilience and strength of a PCB. And it doesn’t add extra weight.

Highly Durable

  • It’s because aluminum poses as a sturdy base material. So, it can reduce breakage that may occur during everyday use, production, and handling.

Cost-Effective

  • Aluminum is a more cost-effective option compared to other metals.

Better Heat Transfer

  • Aluminum is a great example of metals that help transfer heat away from vital parts. As a result, it reduces the harmful effect that the circuit board may have gotten.

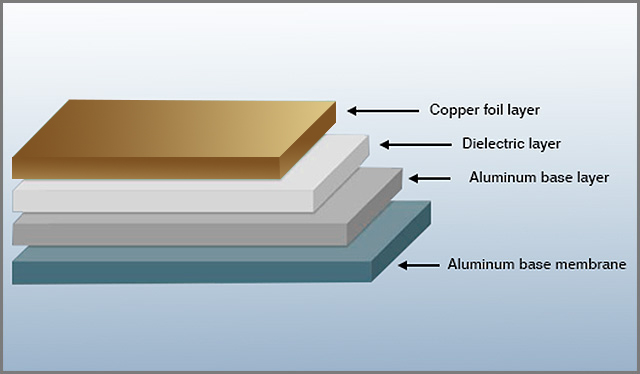

THE BUILD LAYOUT OF ALUMINUM PCB

The structure or assemblage of aluminum PCBs comprises of four layers, namely:

ALUMINUM PCB

Copper Foil Layer

  • This layer is usually thicker than the regular CCLs, which measures about 1 oz – 10oz. Also, a thicker copper layer equally means it possesses a bigger current carrying capacity.

Dielectric Layer

  • The dielectric layer It has a part with thermal conductivity, and it’s usually about 50 μm to 200μm in thickness. Plus, the layer has a relatively low thermal resistance, and it’s ideal for its applications.

Aluminum Base

  • This aluminum base is the third layer—made from an aluminum substrate. So, its thermal conductivity level is very high.

Aluminum Base Membrane Layer

  • This layer is usually selective—compared to other layers. It helps to protect the aluminum surface from unnecessary scratching and etching. However, it comes in two types; one is an anti-high temperature usually about 250 degrees. And the other is lower than 120 degrees.

Previous slide
Next slide

OUR COMPANY

In 2005, we founded OurPCB. And ever since, we have grown to be reckoned with in the PCB Assembly Industry. Also, we have top and experienced PCB engineers in our PCB Manufacturing and assembling firm based  in China.

THE PRODUCTION CAPABILITIES OF OURPCB

Features
Material:
FR4 covering, aluminum core, copper core
Surface finishing:
ENEPIG plating, immersion gold, immersion silver, hard gold, OSP
Testing:
A.O.I testing and Fly Probe Testing
Thermal conductivity:
2.0 W/(m*k), 1.0W/(m*k)
Board thickness:
0.4-3.2mm
Silkscreen:
Black, white
Build time:
Three days
Solder mask:
Black, matte green, green, yellow, red, white, purple, matte black
Base material:
Rogers, flex, aluminum, flex-rigid, FR4, etc.
Via process:
Vias not covered, tenting vias, plugged vias.
Lead time:
2-3 days
Min. hole size:
0.8mm
Finish copper:
1-4oz
Min. spacing:
4mil

THE TYPES OF ALUMINUM PCBs

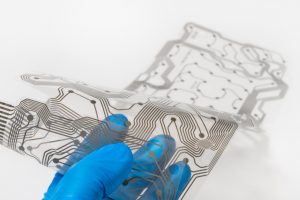

Flexible Aluminum PCBs

top-notch flexibility, electrical insulation, and thermal conductivity

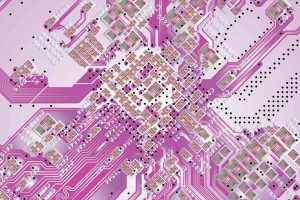

Multilayer Aluminum PCBs

The multilayer aluminum PCBs make up multilayers of dielectric materials that have thermal conductive characteristics.

Therefore, these aluminum PCBs are great heat dissipation agents designed for sophisticated solutions.

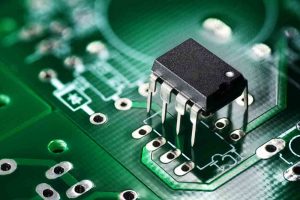

Multilayer Aluminum PCBs

Through-hole Aluminum PCBs

These through-hole aluminum PCBs are most suitable for electric insulation, and they pass metal clearances easily.

The through-hole aluminum PCBs have been pre-drilled and back-filled with a dielectric component.

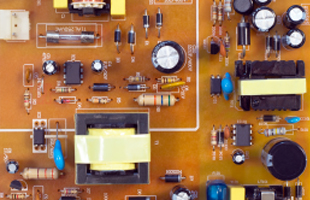

Hybrid-Aluminum-PCBs

Hybrid Aluminum PCBs

By thermally fusing an aluminum base material to a processed non-thermal material, you’ll get Hybrid aluminum PCBs.

Normally, you can use thermal dielectric material to fuse two- or four-layer FR-4 boards to an aluminum base.

In the end, the hybrid PCBs come with a heat-shield, increased sturdiness, and heat dissipation agent.
