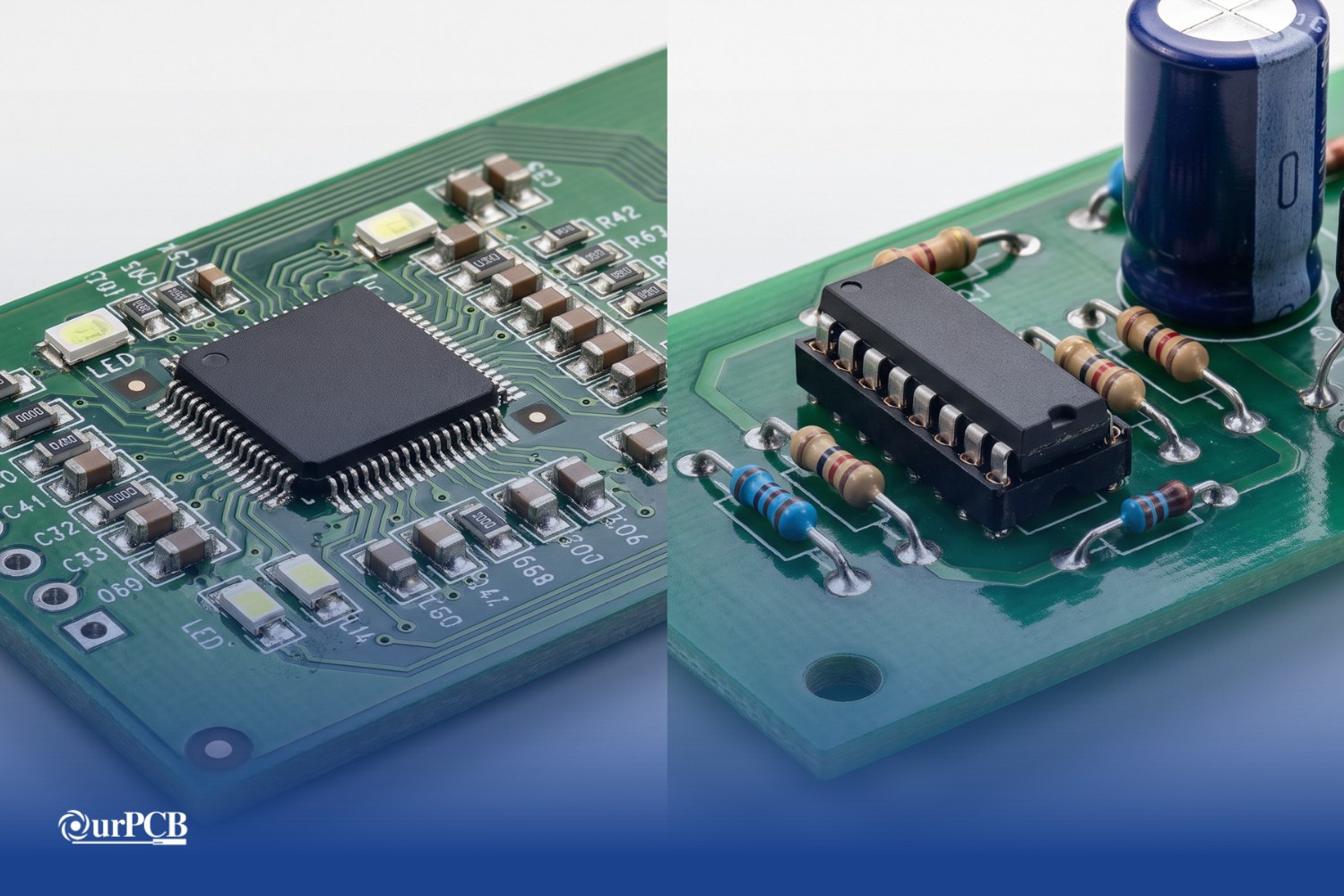

Choosing between SMT and through-hole assembly starts with your board's requirements: available space, component packages, mechanical loads, and production quantity. SMT suits compact designs with a high component count, while through-hole assembly supports leaded parts and connections that face repeated physical stress.
Many boards need both. A controller might use surface-mounted chips alongside through-hole terminal blocks, giving each component the mounting method its job demands.
Start with your bill of materials and identify the parts that determine your assembly options. If most components use surface-mount packages, review our SMT assembly service alongside the decision factors below before finalizing your layout.
What is SMT Assembly?
Surface-mount technology (SMT) attaches components directly to pads on the PCB's surface. These components don't require lead holes, though the board may still include vias and mounting holes.
A typical SMT line prints solder paste onto the pads, places components automatically, then passes the board through a reflow oven. Controlled heating melts the solder, which forms joints as it cools. The process must accommodate package requirements and the board's thermal behavior.
SMT supports small resistors, capacitors, integrated circuits, and many connectors. Its compact packages and automated placement make it well suited to wearables, communication equipment, consumer electronics, and industrial controllers.
When comparing SMD vs THT, note that SMD refers to the surface-mount device itself. SMT describes the assembly technology; SMD describes the component being mounted.
What is Through-Hole Assembly?
Through-hole technology (THT) uses component leads that pass through drilled holes in the PCB. Solder connects those leads to the board, typically within plated holes and around their pads.
Components are inserted manually or with automated insertion equipment. Wave soldering handles many joints in a single pass, while selective soldering targets specific connections. Hand soldering suits small quantities or components requiring individual attention.
Common through-hole parts include terminal blocks, pin headers, transformers, large capacitors, and older integrated-circuit packages. Their mounting arrangement can provide strong mechanical connections, particularly at cable entry points and user-operated switches.
Mounting style alone doesn't guarantee durability, though. Component weight, board support, solder quality, and operating conditions all affect long-term reliability.
Special Offer: Get $100 off your order!
Email sales@ourpcb.net to get started!
SMT vs. Through-Hole at a Glance
| Process | Typical Components | Mechanical Strength | Cost Profile | Best-Fit Use Case |
|---|---|---|---|---|
| SMT | Chip resistors, capacitors, ICs, compact connectors | Package-dependent; loaded connectors may need retention features | Setup costs offset by efficient automated placement at volume | Dense boards and repeat production runs |
| Through-hole | Terminal blocks, leaded capacitors, transformers, headers | Well suited to loaded connections; heavy parts may need additional support | Insertion, drilling, and soldering add to total cost | Leaded parts, stressed connections, and legacy layouts |
| Mixed assembly | Surface-mount electronics plus through-hole hardware | Matches attachment method to each component's load requirements | Additional processing and handling may increase total cost | Compact control boards with robust external connections |

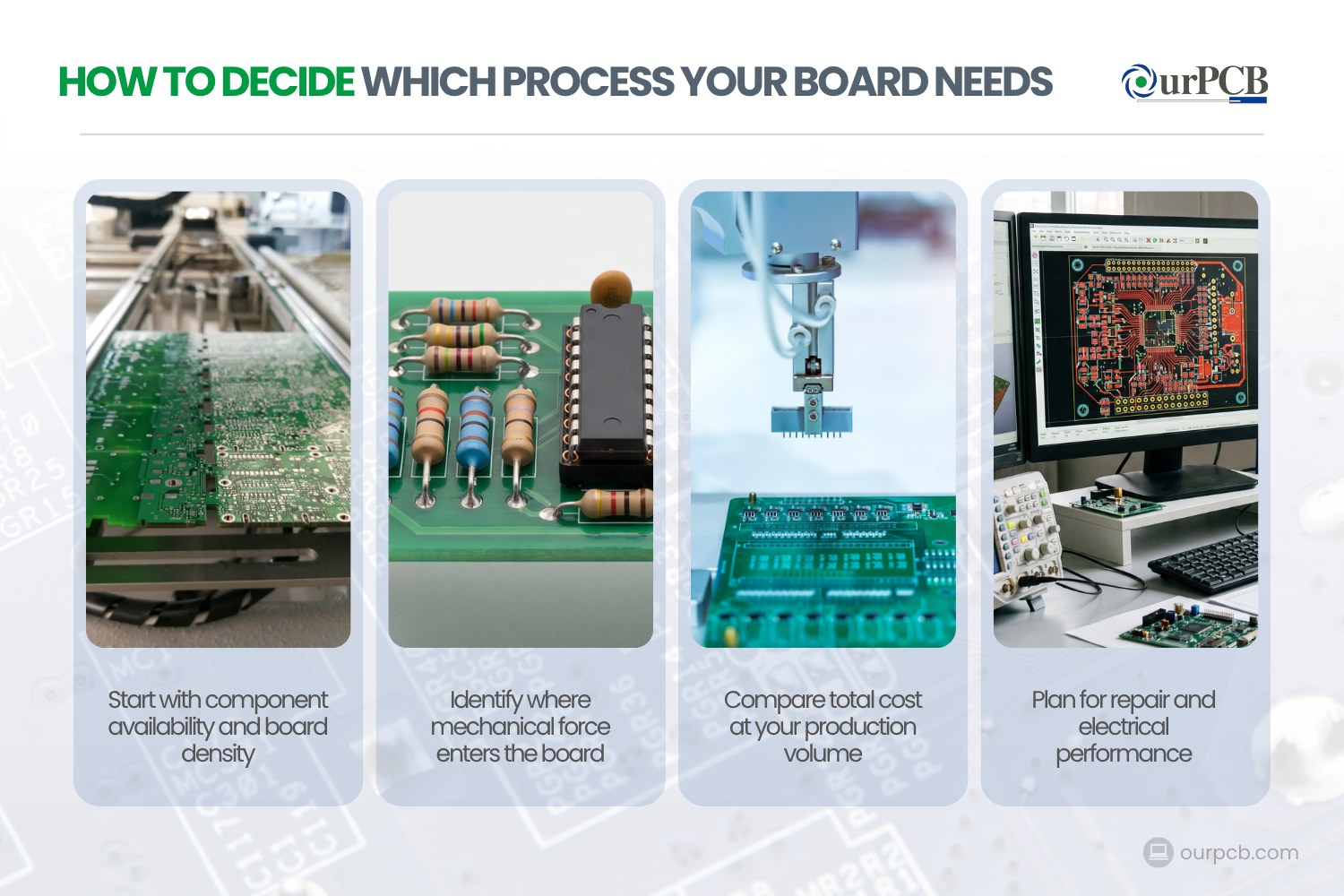

How to Decide Which Process Your Board Needs
Check these four factors in order; they'll tell you which process your board needs
Start with component availability and board density
Check the actual packages in your bill of materials before comparing assembly prices. Many modern ICs are only available in surface-mount packages. A required transformer or connector may favor through-hole construction.
Next, review your enclosure dimensions and routing space. SMT fits more components into a smaller area and supports placement on both sides of the board. Through-hole leads occupy space across the board's full thickness and constrain nearby routing.
For a compact sensor, SMT is often the practical starting point. For an existing design with specified leaded components, retaining THT may avoid unnecessary redesign and qualification work.
Identify where mechanical force enters the board
Look for cable connections, switches, heavy components, and points where users apply force. Through-hole mounting suits these locations because leads extend through the full board thickness.
Check the connector's full board-mounting arrangement before defaulting to through-hole. An SMT connector with retention tabs or housing support may meet your requirements without through-hole signal pins.
Don't treat THT as an automatic solution for vibration. Heavy transformers and tall capacitors may still need brackets or adhesive. Keep cable strain and enclosure loads away from solder joints wherever possible.
Specify expected mating cycles, vibration, and shock conditions. Then evaluate the complete attachment system against those requirements.
Compare total cost at your production volume
SMT's automated placement becomes attractive as component counts and repeat quantities increase. Stencils, programming, and line setup create upfront costs, but production spreads them across more boards.
Through-hole assembly may require lead preparation, insertion, and a separate soldering step. Automated insertion can reduce labor for compatible parts, so THT isn't necessarily a manual process.
There's no universal quantity at which SMT becomes cheaper. Request quotes using the same component specifications, quantities, inspection requirements, and testing scope.
Include PCB fabrication costs in your comparison. Component holes, larger board dimensions, and routing constraints can all affect the final price. For mixed boards, check whether a few through-hole parts introduce disproportionate handling or tooling costs.
Plan for repair and electrical performance
Accessible through-hole parts can simplify hands-on servicing, especially when technicians use conventional soldering tools. Removing multi-pin components from plated holes, though, takes time and risks board damage.
Larger surface-mount parts can also support practical repair. Tiny packages and hidden connections may require magnification, controlled heating, and specialized inspection equipment.
Choose packages based on your service strategy: component replacement, module replacement, or complete board replacement. Build access to likely repair points into the design rather than assuming one assembly method guarantees easy servicing.
Electrical requirements matter too. Short SMT connections can reduce unwanted inductance, but layout still controls signal quality. High current doesn't automatically require THT; evaluate terminal ratings, copper geometry, and heat dissipation.
When to Use Mixed Assembly
Mixed assembly combines SMT and through-hole components on a single PCB. It makes sense when an otherwise compact design needs mechanically loaded connectors or components unavailable in suitable surface-mount packages.
For example, an industrial controller might combine:
- Surface-mounted processors and signal-conditioning components.
- Through-hole terminal blocks for field wiring.
- A leaded relay that meets the switching requirements.
A common sequence completes SMT reflow first, then inserts and solders through-hole parts. We select wave, selective, or hand soldering based on component placement, access, and quantity.
Leave clearance for soldering equipment and protect nearby components from unwanted heat. Selective soldering process control also depends on flux application and adequate preheating.
Some compatible through-hole components can join the reflow process. This approach requires suitable parts and carefully planned solder deposits. Check package-specific soldering limits before choosing a shared thermal process.
Ready to Discuss Your Board?
Use SMT as your starting point for dense electronics. Retain through-hole parts where their packages or mechanical requirements justify them, and choose mixed assembly when both conditions apply on the same board.
At OurPCB, we handle SMT, through-hole, and mixed assembly in-house, with IPC-certified processes and production runs from prototype through high volume. For a predominantly surface-mount design, explore our SMT assembly capabilities. For leaded components and mechanically demanding connections, review our through-hole assembly service.
Send us your board files, bill of materials, quantities, and testing requirements. Flag any mixed-assembly components so we can plan the complete build with you.
SMT vs. Through-Hole Assembly FAQs
What files should I provide for an assembly quote?
Provide fabrication files, a bill of materials with manufacturer part numbers, and assembly drawings. Include placement data for SMT components, component polarity information, order quantities, and testing instructions.
Can I replace a through-hole part with an SMT equivalent?
Usually, you'll need a PCB layout change because the footprints differ. Confirm electrical ratings, thermal behavior, availability, and mechanical fit. Test the revised design before approving production.
Which quality standards should I specify?
Define the applicable revision and product class with your assembler. IPC J-STD-001 and IPC-A-610 address soldering requirements and assembly acceptance. Neither replaces product-specific functional testing.
Should prototypes use the same process as production boards?
Whenever practical, use the intended production packages and assembly process. This helps identify placement, soldering, and inspection problems early. A breadboard proves circuit behavior but won't validate your final assembly workflow.
