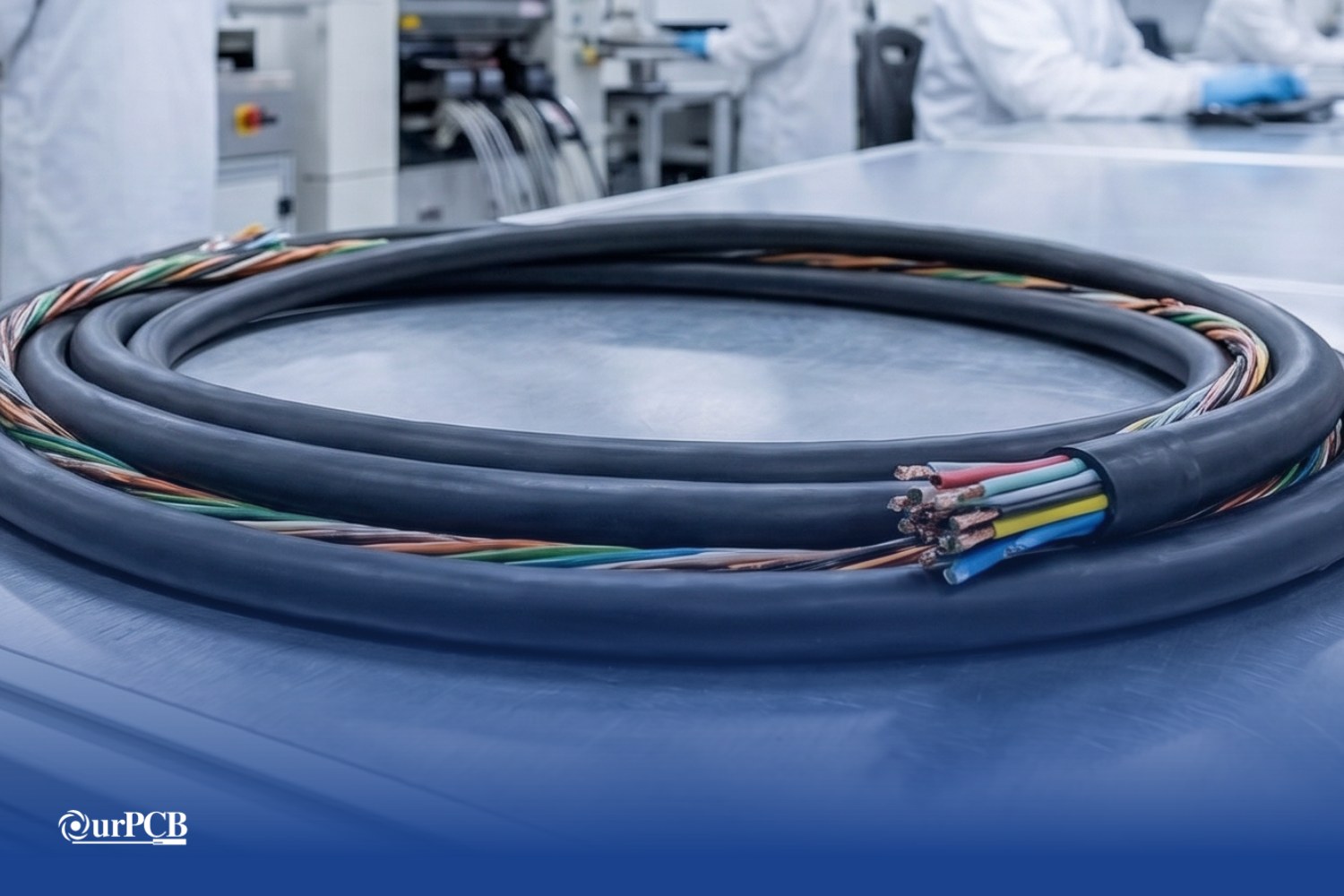

Cable overmolding protects the connection between a cable and its connector by molding material around the termination. It can improve strain relief and environmental sealing, but it also introduces tooling costs and limits repair access. Field-installable connectors offer a different balance, especially when your installation requires adjustable lengths or on-site repairs.
Choosing between these options starts with the operating environment, expected movement, and service plan. Connector availability and production volume also influence the decision for custom cable assemblies. The right approach should protect electrical performance without adding unnecessary cost or making maintenance harder than your application demands.
What is Cable Overmolding?
Cable overmolding forms a protective body around an already-terminated cable, connector, splice, or junction. The manufacturer positions the assembly inside a mold, introduces molding material, and removes the part after it solidifies.
An overmolded cable assembly combines termination protection, grip features, and cable support within one molded shape. Designers can also control the cable exit angle to suit restricted installation spaces.
Non-overmolded assemblies use alternatives such as backshells, cable clamps, boots, or heat-shrink tubing. Some support field termination, while others arrive factory-assembled. Non-overmolded doesn't automatically mean field-installable.
The practical difference concerns how you protect and service the termination. Overmolding encloses it permanently; a serviceable connector housing can allow access later.
Low-Pressure vs. Injection Overmolding
Low-pressure molding is itself an injection process. Here, the comparison means low-pressure hot-melt encapsulation versus conventional high-pressure injection overmolding.
Low-pressure systems commonly use polyamide- or polyolefin-based hot melts around cables, connectors, and sensitive components. These materials flow around parts with relatively low molding forces. Low-pressure molding materials support encapsulation without conventional high-pressure processing.
Conventional injection overmolding accommodates materials such as polyvinyl chloride (PVC) and suitable thermoplastic elastomers (TPEs), including thermoplastic polyurethane (TPU).
Manufacturers must support the termination against injection forces and confirm that insulation tolerates the processing conditions.
| Decision Factor | Low-Pressure Molding | Conventional Injection Overmolding |
|---|---|---|
| Typical materials | Polyamide and polyolefin hot melts | PVC, TPU, and other suitable TPE grades |
| Component loading | Lower molding forces | Greater need for component support |
| Common purpose | Encapsulating vulnerable joints or components | Forming connector bodies and cable boots |
| Tooling | Often simpler; geometry still matters | More demanding tooling and process control |
| Main checks | Adhesion, service temperature, and heat exposure | Pressure, heat exposure, filling, and component movement |
Neither process guarantees better sealing or longer life. Choose the material and finished geometry based on your requirements, then confirm the process can produce them consistently.
Special Offer: Get $100 off your order!
Email sales@ourpcb.net to get started!
Strain Relief and IP Sealing
Overmolding addresses both, but each works differently and depends on design decisions you need to make before specifying the assembly.
How strain relief protects the termination
A cable's connector exit concentrates mechanical stress. Repeated bending or pulling can load conductors and damage crimped or soldered connections.
A properly designed overmold transfers pulling loads into supported structures and spreads bending over a longer transition. Its length, stiffness, and shape must match the cable's flexibility.
A short, rigid boot may simply shift the failure point farther down the cable. Specify pull loads, bend radius, flex cycles, and test conditions instead of requesting "heavy-duty strain relief."
What sealing does – and doesn't – prove
Overmolding can close moisture paths around the cable entry and connector body, but poor adhesion, voids, or damaged jackets can still leave leakage paths.
IEC 60529 IP ratings classify protection against solid-object and water ingress. An IP rating applies to a defined enclosure or assembly configuration, not merely its molding material.
Document whether your connector must remain mated or capped during exposure. State the required immersion conditions, spray exposure, and acceptance criteria.
Immersion resistance doesn't automatically establish washdown resistance. Likewise, IP testing doesn't establish resistance to oils, cleaning chemicals, or repeated flexing.
Use mechanical and environmental qualification together where service conditions demand both. Check sealing after representative bending or thermal cycling, for example.
Material Selection for Overmolds
Start with your cable jacket, connector housing, and exposure conditions. A durable resin can still fail if it doesn't bond to adjoining surfaces. Overmold material compatibility depends on the specific resin grade and substrate; confirm adhesion using actual production materials rather than assuming compatibility from a polymer family name.
| Material | Potential Advantages | Selection Checks |
|---|---|---|
| PVC | Economical connector bodies and flexible boots | Plasticizer compatibility, temperature limits, and application restrictions |
| TPU | Abrasion resistance and flexible mechanical protection | Hydrolysis, chemical exposure, hardness, and jacket adhesion |
| Other TPE grades | Adjustable flexibility and grip | Grade-specific bonding, weathering, and service temperature |
| Polyamide hot melt | Low-pressure encapsulation around terminations | Moisture exposure, heat resistance, and substrate adhesion |
TPU material properties can include abrasion resistance, elasticity, and oil resistance. Exact performance varies by grade; one compound won't meet every exposure requirement.
For outdoor equipment, specify UV exposure and operating temperatures. For cleaning-intensive applications, identify the chemicals, concentrations, and contact times.
At OurPCB, we recommend defining these conditions before finalizing the assembly specification. Material selection should support your actual use case, not just a material category.
Tooling and NRE Cost Considerations
Custom cable overmolding usually requires upfront investment beyond the assembly's unit price. Non-recurring engineering (NRE) can include design work, tooling, fixtures, process development, and qualification.
Ask suppliers to separate those charges from recurring production costs. A lower unit price can disguise a larger initial commitment.
Your quotation should clarify:
- Mold ownership, storage, maintenance, and expected service life.
- Prototype tooling versus production tooling.
- Sampling, tool adjustments, and qualification coverage.
- Minimum order quantities and setup charges.
- Costs for changing cable diameter, connector shape, or exit geometry.
Spread incremental NRE across realistic lifetime demand. An additional $6,000 investment, for example, adds $12 per assembly across 500 units, but only $1.20 across 5,000.
If overmolding saves $3 per unit versus an equivalent alternative, that hypothetical investment breaks even at 2,000 units.
Overmolding won't always reduce recurring costs. Its value may come from fewer assembly steps, repeatable geometry, or reduced failure exposure.
A low-volume project can still justify tooling when failures create expensive downtime. Conversely, frequent design revisions can undermine the economics of a high-volume molded cable assembly.
When Field-Installable Beats Overmolded
Field-installable connectors make sense when technicians must cut cables to length or route them through openings smaller than the connector. They're also the right call when the service plan requires connector replacement.

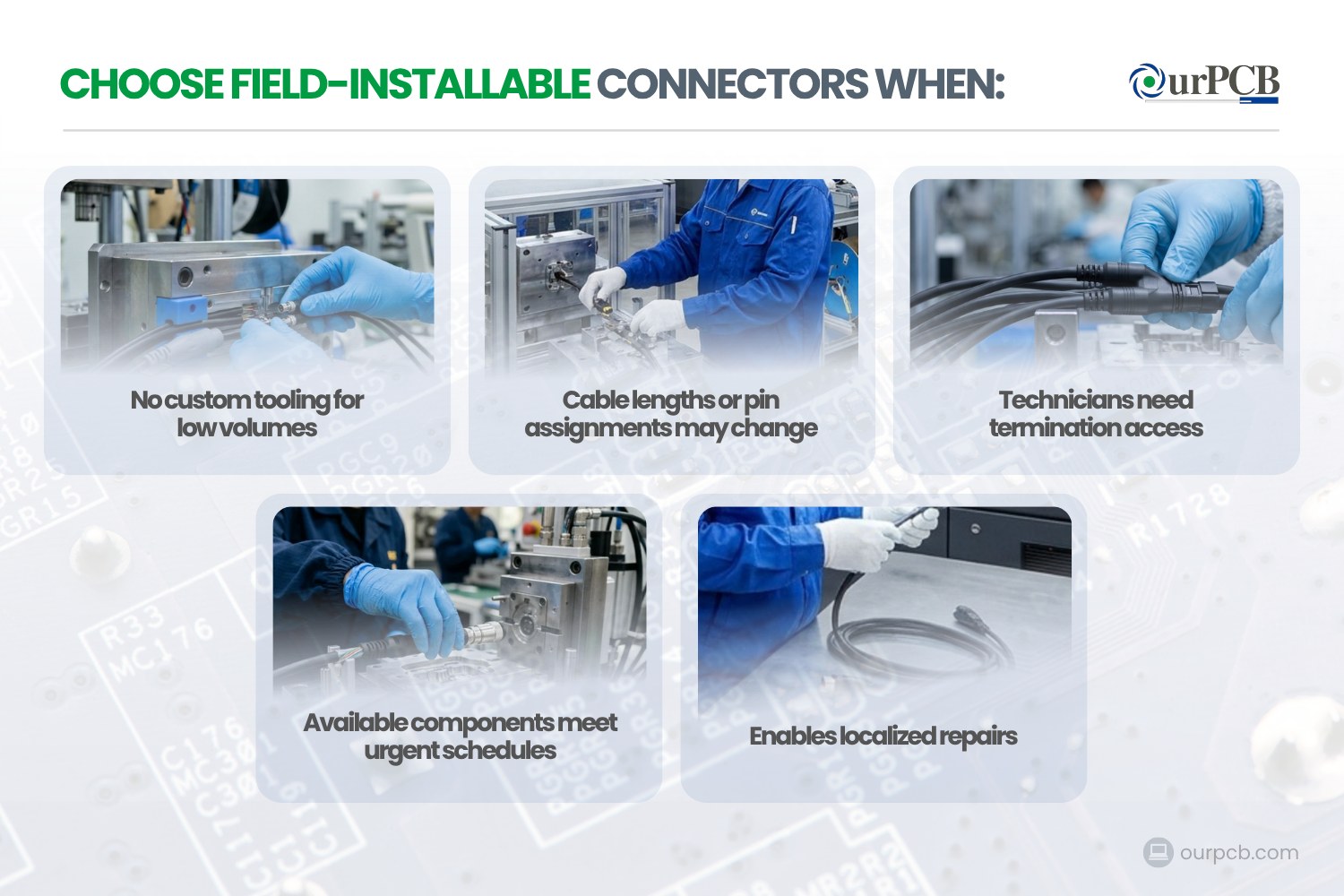

Choose them when:
- Production quantities don't justify custom tooling.
- Cable lengths or pin assignments may change.
- Technicians need access to the termination.
- Available components can meet an urgent schedule.
- Maintenance requires localized repairs instead of complete cable replacement.
Field-installable designs can also provide effective sealing. Suitable cable glands with ingress protection demonstrate that environmental protection doesn't require overmolding.
Correct assembly still matters. Technicians must follow cable-diameter limits, strip lengths, tightening instructions, and seal-placement requirements.
Overmolding becomes more attractive when your geometry is stable, and operators repeatedly handle the connector. It can also help where consistent factory-built terminations simplify installation.
Compare complete installed costs, including technician labor and replacement procedures. Stock availability can make field-installable options faster initially, while approved molded designs can simplify repeat orders.
If your application favors overmolding, explore our custom overmolded cable assembly service. Share your drawings, quantities, environment, and testing requirements so we can discuss the appropriate manufacturing approach.
Cable Overmolding FAQs
What should I include in an overmolded cable RFQ?
Provide connector part numbers, cable specifications, pinouts, dimensions, and expected annual demand. Include acceptance tests, exposure conditions, and any restrictions on material substitutions.
Can I prototype the shape before ordering production tooling?
Yes, a printed mockup can help check grip, clearance, and routing. It won't establish production adhesion, flex life, or sealing performance.
Does overmolding provide electromagnetic shielding?
Ordinary insulating overmolds don't provide electromagnetic shielding. Shielding requires an appropriate conductive structure and termination arrangement. The overmold can protect that arrangement mechanically.
Can one assembly combine molded and field-installable ends?
Yes, a molded equipment end and a field-installable opposite end can balance protection with installation flexibility. Specify and validate each end for its intended environment.
