OV2640: What Makes This Camera Module Unique

The OV2640 continues to win the hearts of developers despite its end-of-life status. Although it entered the market long ago, the OV2640 still competes with newer camera sensors because of its compatibility with modern devices. The OV2640 is ideal for PC multimedia, camera and cellular phones, and even toys. Follow our guide to learn why you should consider the OV2640 for image quality control projects.



Special Offer: Get $100 off your order!

Claim your $100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

What Is OV2640?



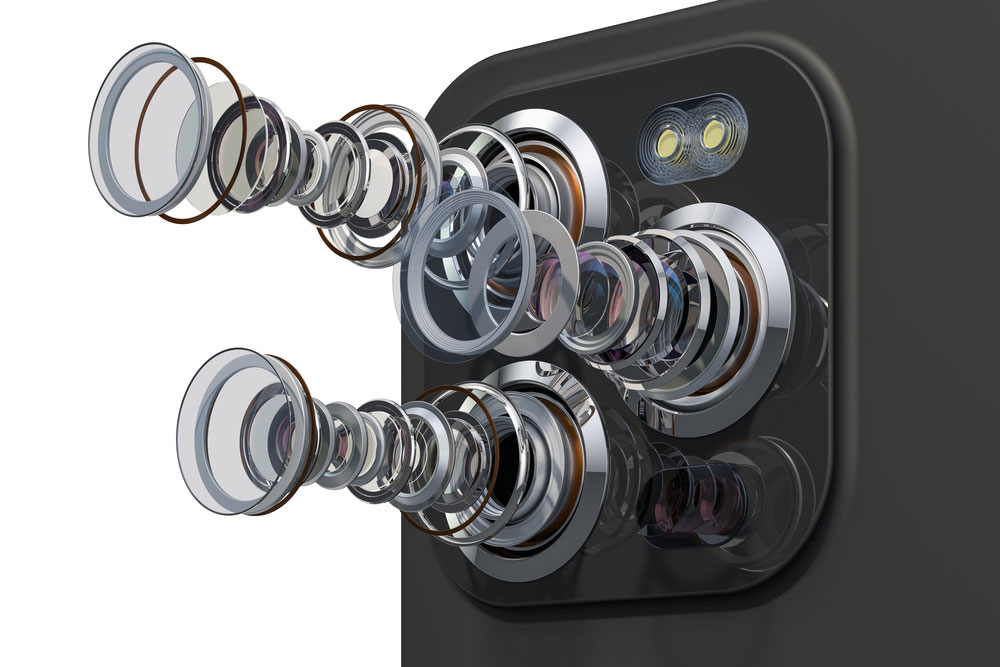

Disassembled smartphone cameras

Disassembled smartphone cameras



The OV2640 is one of OmniVision’s timeless products. Although its production stopped in 2009, the OV2640 still features modern gadgets. This low-voltage image sensor combines the functionalities of an image processor and single-chip UXGA. Besides, the OV2640 features full-frame images in various formats through its SCCB interface.

Moreover, the OV2640 image array can reach 15 fps in UXGA, with total user control over output data transfer, picture quality, and formatting. Thus, it's handy in improving image resolution. You can also program image processing functions like gamma, exposure control, color saturation, and white balance through the SCCB platform.

Besides, it has a compression engine that boosts processing power. Lastly, it features the OmniVision CameraChips that improve picture quality in the OV2640.



 OV2640 Key features



Close up on a camera module for a mobile phone

Close up on a camera module for a mobile phone



  • Scaling ability
  • Standard SCCB interface
  • Variable frame rate
  • Embedded microcontroller
  • Snapshot and video operation
  • Picture quality controls such as edge enhancement, noise cancellation, and color saturation
  • High sensitivity
  • Windowing functions
  • Compression, flash strobe, and LED capabilities
  • External and internal frame synchronization
  • The OV2640 promises automatic control functions such as AGC, ABLC, AWB, and AEC



Special Offer: Get $100 off your order!

Claim your $100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

OV2640 vs. OV7670: Key Specifications

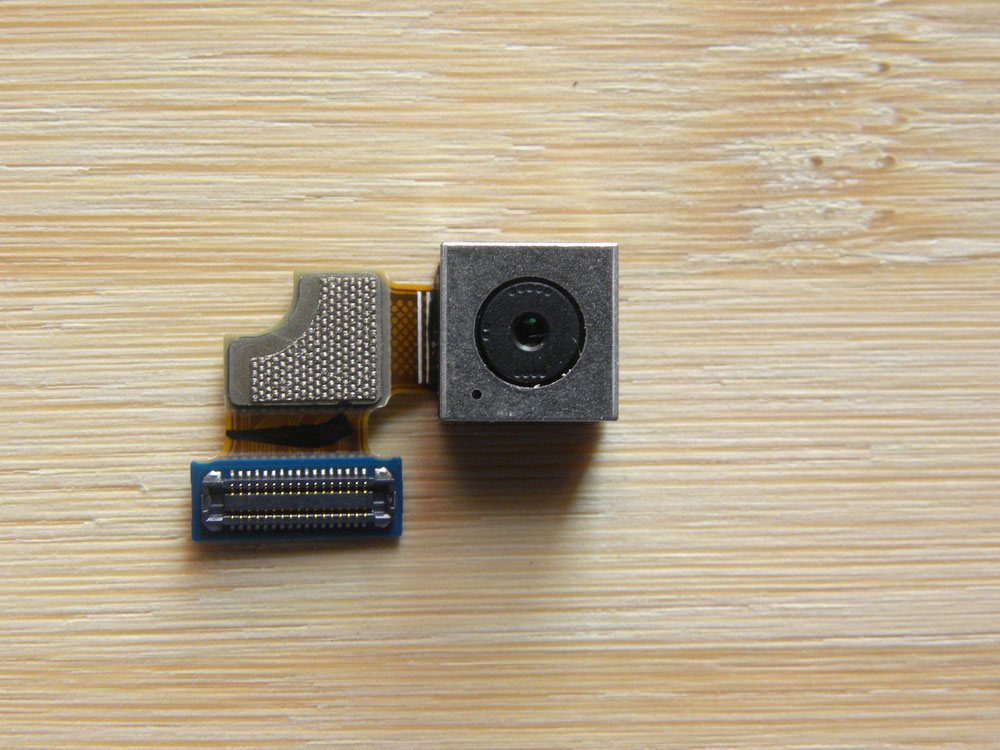

Camera module from disassembled mobile phone

Camera module from disassembled mobile phone



The OV2640 and the OV7670 are some of the most popular image sensors. In addition to their successful MCU integration, these camera modules have been part of the growth of machine learning. Additionally, the OV2640 and the OV7670 come with RGB video format and built-in ISP.

Although both sensors were produced for mobile applications, the OV2640 and OV7670 have different features.

When it comes to image quality, the OV2640 promises a higher resolution in addition to its JPEG decoder. Another difference is initialization. While the OV7670 starts immediately after powering it, the OV2640 performs some registers before outputting any video.

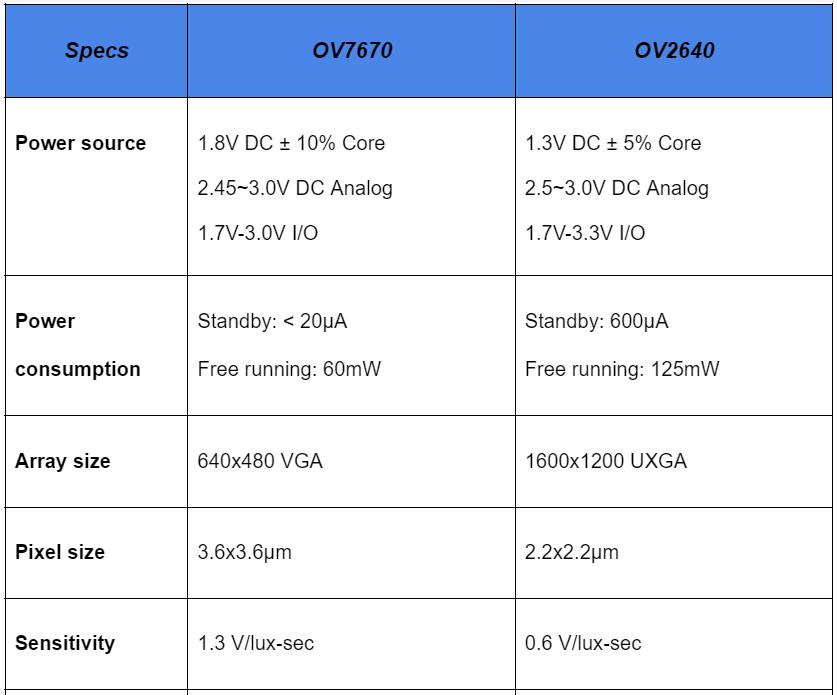

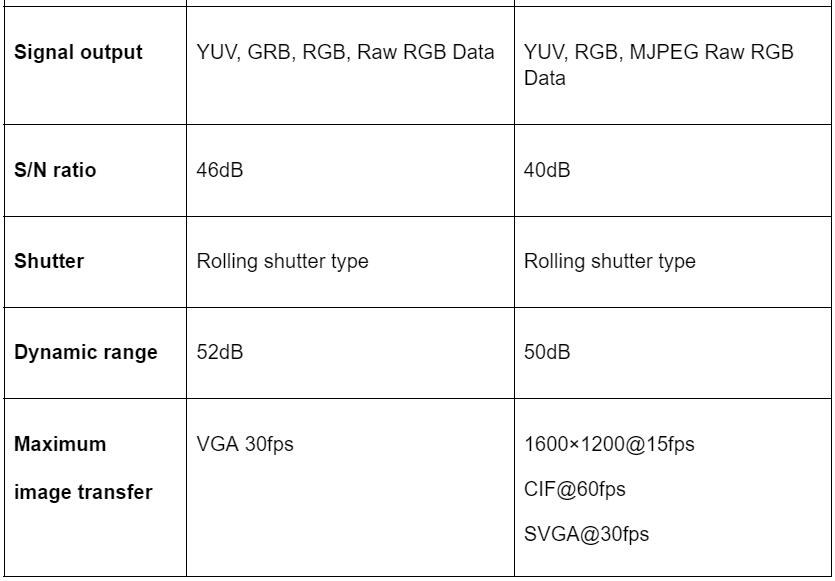

Here’s how the OV7670 compares to the OV2640:



Here’s how the OV7670 compares to the OV2640

Here’s how the OV7670 compares to the OV2640



Why the OV2640 is the Perfect Sensor?

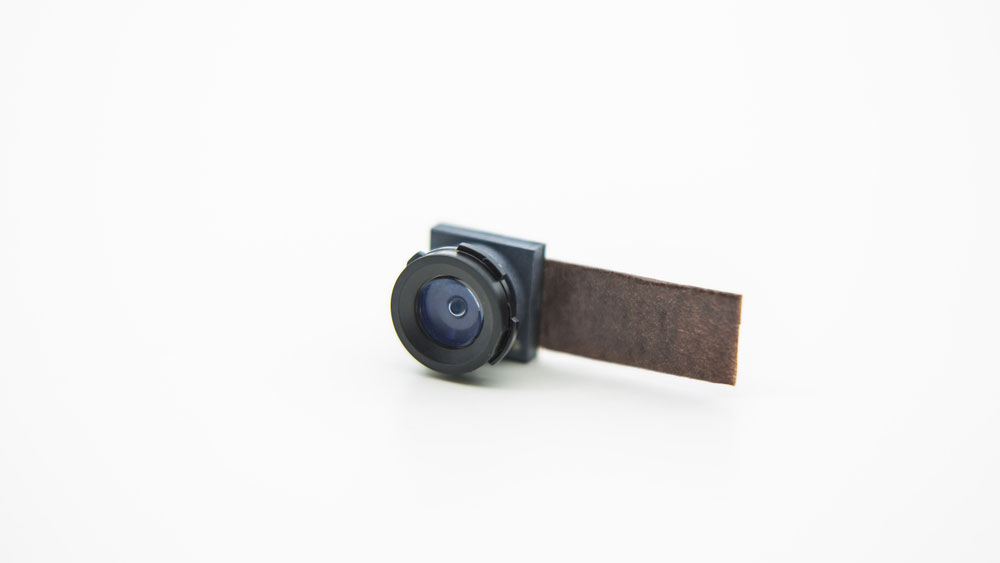

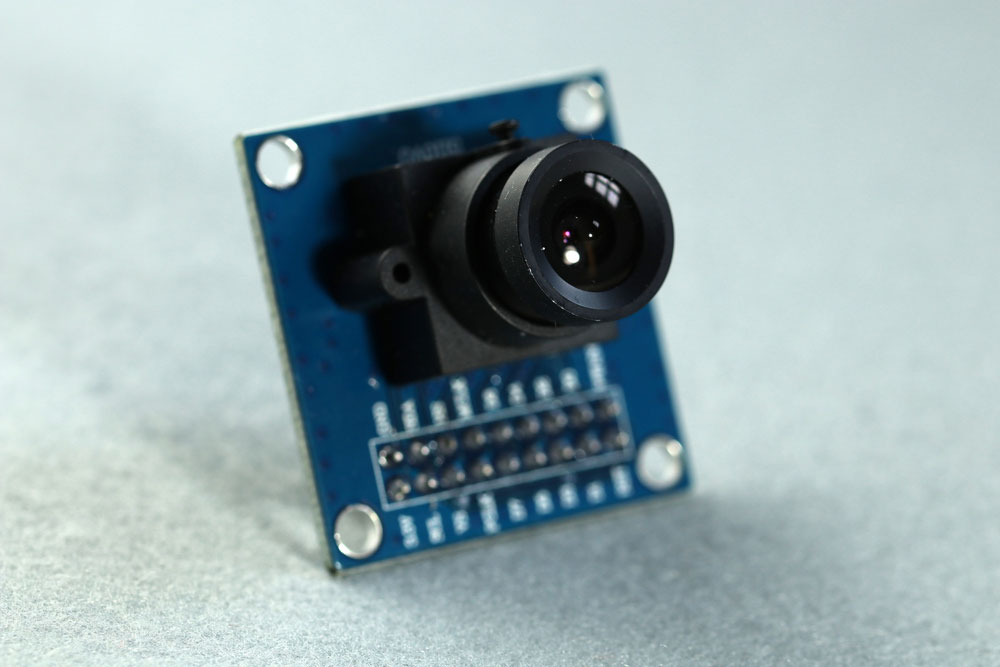

Small Video Camera Module

Small Video Camera Module



The OV2640 may not have the fanciest resolution or picture quality, but its features still stand out. First off, the OV2640 SOC sensor comes with an on-chip Image Signal Processor that presents crisp images with its auto-white balance.

Hence, it goes hand in hand with the DVP interface that offers parallel source synchronization with 8-bit capabilities and a linked pixel clock. What’s more, the OV2640 supports low-end RISC microcontrollers such as ESP32.

Also, it features the OV2640 JPEG encoder that offloads the microcontroller’s memory footprint usage and processing power. Ordinarily, a 1600x1200 YUV format picture takes up 3.66MB of RAM.

On the other hand, a similar JPEG image only uses 150KB, offering a compression ratio of approximately x25. The best part is the OV2640 is compatible with the following electronic platforms:



OV2640 and Arduino



Arducam introduced the OV2640 to Arduino in 2012. The OV2640 offered an SPI camera solution and featured an open-source driver. This camera was a huge success since Arduino microcontrollers couldn’t support image sensors with resolutions of 2MP and above.



OV2640 and ESP32



The ESP32 wasn’t compatible with cameras initially. However, the manufacturer upgraded it in 2018 to support parallel cameras without extra hardware. The ESP32 board includes an external PSRAM that increases its RAM space and facilitates photo capture and processing.



ESP32 camera

ESP32 camera

Source: Wikimedia Commons.



OV2640 and CCM



The OV2640 supports compact camera modules with various cable lengths and lens options. Furthermore, CCM allows camera developing, bring-up, tuning, and debugging processes. The OV2640 also offers a lead-free bundle.



OV2640 Alternatives

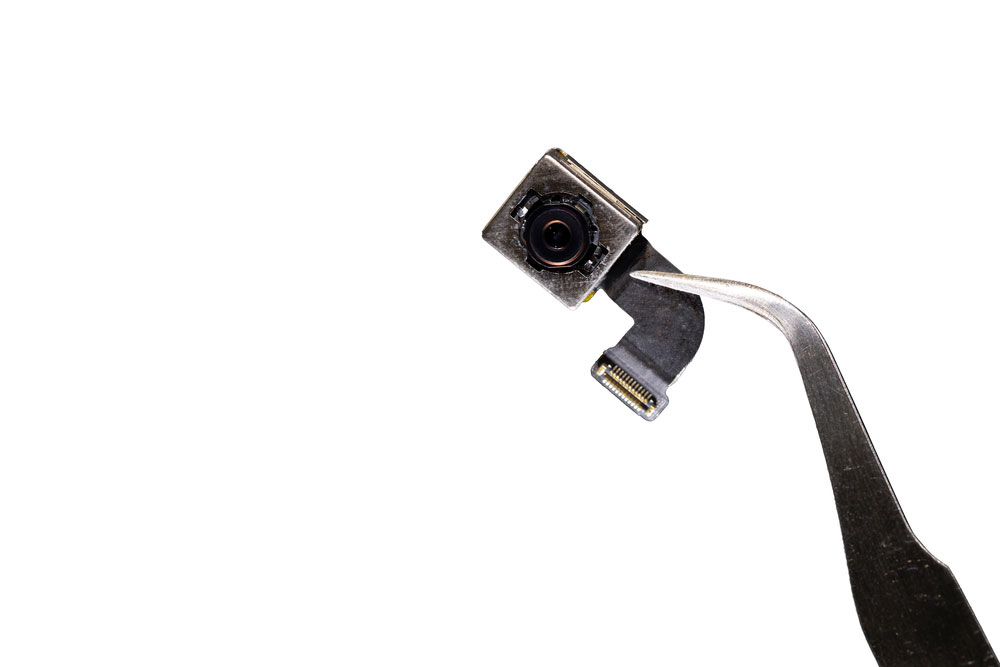

OV2640: Smartphone camera part module

Smartphone camera part module



You can replace the OV2640 with several other computer modules. They include:

720p Sensor

This Novatek NT99141 sensor has many attractive features. For example, it has automatic features such as Auto White Balance and Auto Exposure. It also comes with an RGB Bayer pattern for a better color filter and a card slot.

2MP MT9D111

Although it shares some features with the OV 2640, the MT9D111 lacks a JPEG header. You need to attach a header for clearer images.

3MP

This category includes advanced editions of the OV 2640, such as the OV3640 and OV3660.

5MP

This group has sensors like the OV5642, OV5640, MT9P111, and S5K4ECGX.



OV2640 & OV7670 Camera Projects



OV2640: Smartphone camera module component.

Smartphone camera module component.



The OV2640 is ideal for different projects. They include



Hidden Security Camera



  • Start by gathering the following components:
  • OV 2640 camera board
  • USB cable
  • Battery cable
  • 3D-printed enclosures
  • Jumper wires
  • USB to TTL
  • Soldering iron
  • Hot glue gun
  • Make programming connections
  • Install the ESP32 environment
  • Upload your webserver sketch
  • Assemble the parts inside the enclosure
  • Test your security camera



Doorbell Camera



  1. Collect the necessary components, for example, push-button, micro-USB power connection, enclosure, soldering gun, and the OV 2640 camera board.
  2. Create the firmware by writing the YAML code. You could also rewrite the code according to your needs.
  3. Write the home assistant script
  4. Assemble your hardware in the enclosure



OV2640: Doorbell Camera

Doorbell Camera



Other projects you can undertake with the OV 2640

  • Automatic Number Plate Recognition
  • People Counter
  • Smart Home
  • Optical Character Recognition
  • Lastly, you can also create simple projects using Arduino Raspberry Pi and Arduino Uno.



Summary



The OV 2640 is a popular image sensor in today’s market. This article explains the features of this camera module and why it’s essential in color saturation adjustment projects. Moreover, it'll help you identify some cost-effective IoT solution projects you can start with the OV 2640. Lastly, in case you have any queries, reach out.
