Taconic PCB- Essential Facts and Considerations When Using Taconic PCB

Numerous PCBs exist, but few match the Taconic PCB's performance, especially in high-speed applications. So what are the key characteristics of this iconic type of PCB by Taconic? We'll explicitly elucidate its key features and uses and compare its properties to Isola PCB and Rogers PCB. Hence, for more details, check out our Taconic PCB guide.


What is Taconic PCB?


A high tech Printed Circuit Board (PCB)A high tech Printed Circuit Board (PCB)

A high tech Printed Circuit Board (PCB)


It's a type of PCB made from Taconic PCB materials that include woven glass reinforced materials and Ceramic-filled Polytetrafluoroethylene

The PCB is common in high-speed radio frequency laminates applications, typically in communication, microwave electronics, and the aerospace fields. Primarily, this is because of its diminished electrical signal loss and dielectric loss properties.

Also, the PCB features a wide range of dielectric constant values.


Benefits of Taconic PCB


Circuit Board Background

Circuit Board Background


  1. It is a low-cost circuit board with a relatively low dielectric signal loss.
  2. Secondly, it has low electrical signal loss and features a wide range of dielectric constant (ϵr) values.
  3. Also, it has a low dissipation factor and a relatively impressive dimensional stability.
  4. Lastly, the dielectric material has a relatively slow moisture absorption rate.


What to Consider During Hybrid Fabrication of Taconic PCB

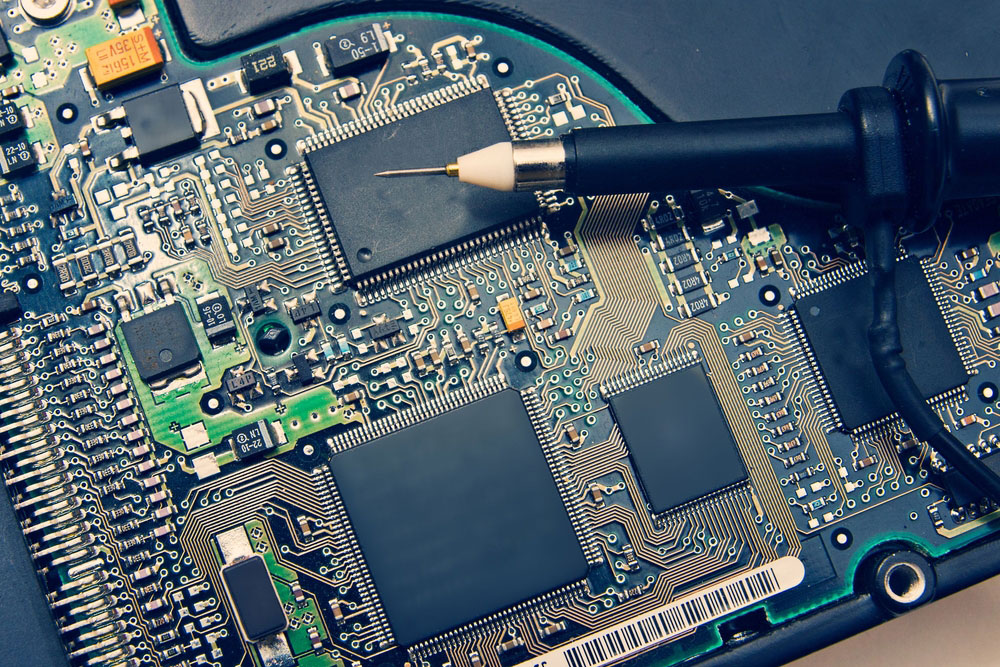

An Oscilloscope Probe on an Electronic circuit

An Oscilloscope Probe on an Electronic circuit


Consider the following features and mechanical properties of Taconic PCB in the hybrid fabrication procedure:


Drill parameters


It's a primary factor worth considering as it's a primary determinant of the ideal hole formation. Primarily, the drill feeds and speeds are due to the stack-up materials. However, you can adjust them during the hybrid fabrication process.


Compatible materials


It is essential for hybrid stack-up materials to match the lamination cycle. Also, some materials require relatively high temperatures and high pressure for effective lamination.

Hence, it's mindful to check the materials datasheet before use.


Preparation of hole wall


It is the next process after drilling the hole. Remember, the preparation process primarily depends on the material you're using.


Fundamental Lamination Techniques in Multilayer Taconic PCB Manufacturing


A Digital circuit board with microchips

A Digital circuit board with microchips


There are numerous lamination techniques, all of which are handy in the manufacturing process. They include:


Multilayer PCBs


These are PCBs featuring multiple trace layers or thin etched boards bonded via lamination. During lamination, the internal PCB layers are subject to extremely high temperatures and pressure.


Double-sided PCBs


They are similar to the PCBS mentioned above regarding the lamination procedure. Also, double-sided circuit board lamination requires a photosensitive dry resist.


PTFE microwave laminates


They are the commonest laminate materials in PCB lamination. Most of these laminates have the following properties:

  • Relatively thick tolerance
  • Low electrical loss
  • Constant dielectric constant

Besides, the laminates are high-quality circuit board materials in radiofrequency PCBs.


Sequential lamination


The lamination technique is handy in circuit boards with at least two subsets.


Types of Taconic Laminates


A Printed Circuit Board with components

A Printed Circuit Board with components


There are numerous high-frequency laminates by Taconic. Here are some examples:


Taconic rf 35


It is a ceramic-filled laminate that also has a woven glass reinforcement layer. The laminate is handy in industrial applications such as manufacturing passive components, power amplifiers, and antennas.

Again, it is also useful in the food processing industry in RF applications and microwave functions. Its features include:

  • It has efficient dimensional stability and a low dissipation factor.
  • Also, it's RoHS compliant and compliant with numerous hybrid builds.
  • Thirdly, it's a stable laminate with low moisture absorption.

 Often during use, combining this laminate with hybrid multiple-layer boards improves its reliability.


Taconic CER 10


It's also a ceramic laminate featuring woven glass with excellent solder resistance. Also, it features efficient electrical properties and is useful in couplers, filters, and power amplifiers.

Besides, it is an interlaminar board that is also dimensionally stable. Hence, it is useful in low-cost and high-volume industrial processes. Other features of the laminate include:

  • It passes the flammability test and is handy in microwave applications.
  • Also, it has excellent thermal features and mechanical properties.
  • Further, it has low moisture absorption, and the laminate possesses impressive flexural strength.


Taconic tly-5


It has a dielectric thickness of .0050 and 2.20 and has similar features to the laminate above. Also, it is common in the satellite communications, cellular communications industry, and automotive radars.

Again, the laminate features cladding metals such as copper, aluminum, and brass and passes the flammability test.


Taconic tly-5A


It's a high-frequency laminate with the lowest dissipation factor of all types of Taconic PCB. Also, the PCB has a PTFE coating and woven glass reinforcement. Some of its key features include:

  • It has a high peel strength and low water absorption.
  • Secondly, its dielectric constants are low.
  • Moreover, the laminate is useful in the automotive radar industry, satellite communications, and power amplifiers.
  • Lastly, the laminate is effective when you use it in hybrid builds.


When Should You Use Rogers PCB Instead of Taconic PCB?

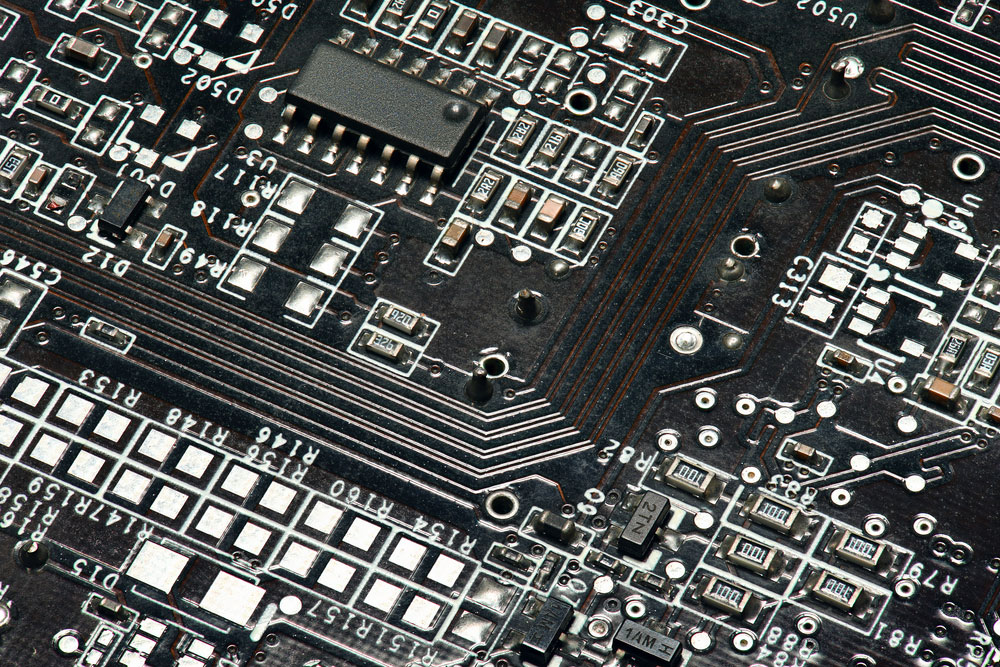

A Printed circuit board and microchip, or CPU closeup

A Printed circuit board and microchip, or CPU closeup


Roger PCB is a high-frequency laminate, similar to the Taconic circuit boards. Also, both laminates belong to the low-loss group.

Nonetheless, when considering efficiency and the least in experiencing losses, Taconic Laminates are better than Roger PCB. Also, while the two are excellent in electrical features and transmission, Rodgers PCB fares better in lower frequency applications.

In addition, both are ideal for extreme heat PCB uses that necessitate ceramic laminates. Lastly, both are excellent in electrical noise minimization, especially where high-performance standards are of the essence.


What is the Difference Between Taconic PCB and Isola PCB?


An Engineer testing a PCB

An Engineer testing a PCB


Taconic PCB Isola PCB
It is a glass-reinforced PTFE/ceramic-filled PTFE PCB for dimensional, thermal, and electrical stability.  It features copper-clad laminates that are also essential in multilayer PCB fabrication.
Secondly, It has thermoset and thermoplastic prepregs in addition to high specialty additions to enable high PCB performance. It has dielectric prepregs and proprietary resin composite materials. The PCB materials facilitate high performance in demanding electronic devices.
Lastly, It is handy in flexible interconnect and radio frequency PCB designs.  It has excellent properties (thermal, electrical, mechanical, and performance), making it better than the typical FR-4 materials.

Applications of Taconic PCB

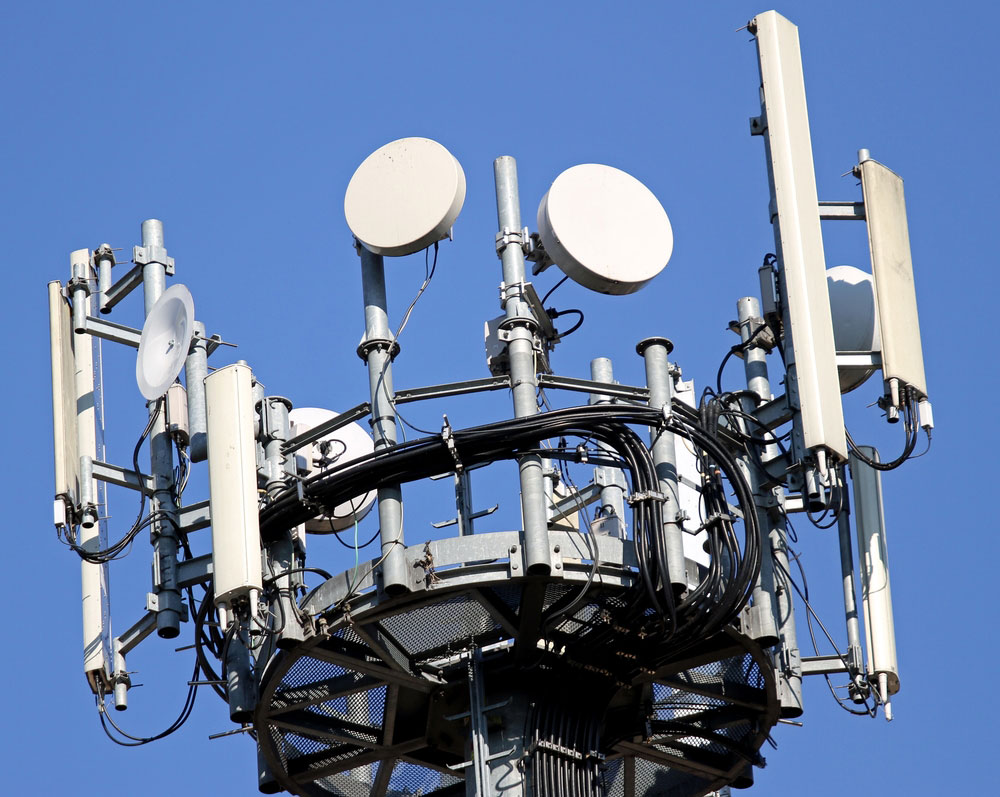

Taconic PCB is essential in telecommunication systems

Taconic PCB is essential in telecommunication systems.


They are commonplace in the following uses:

  • PCS and PCN Antennas
  • Low-noise amplifiers (LNA) and low-noise block downconverters (LNBs)
  • Passive Components
  • Aerospace industries in Guidance Telemetry
  • Power Amplifiers
  • In Phase Array Radar systems
  • Filters
  • Automotive Cruise Control
  • Universal Mobile Telecommunications System (UMTS) and Universal Mobile Telecommunications System (GSM) Antennas




In conclusion, Taconic PCB is a circuit board that avails a wide range of benefits to all stakeholders of the circuit industry. Also, given the extensive types of this PCB, DIY project enthusiasts are spoilt for choice in their DIY PCB projects. Lastly, at OurPCB, we are ready to help you access high-performance Taconic PCB. Talk to us anytime you have a query on Taconic PCB, and our agents will assist you immediately.
