How to Solder Wires: A Step by Step Guide

Soldering is a vital skill for anyone working on electronic projects, as it is essential for creating strong connections between components. At OurPCB, we specialise in PCBA (Printed Circuit Board Assembly), providing the necessary expertise and resources to ensure your soldering tasks are completed successfully. Our services include technical support and guidance to help you navigate the soldering process with confidence.
Quote Form
check whiteFastcheck whiteExciting Dealscheck whiteFree
1 2 3
Table of Contents

Most electronic projects and electrical components, in one way or another, require soldering.

And soldering is an essential skill that we all should have to make our lives easier.

Therefore, we will guide you on your first soldering journey.

Today’s article looks at soldering, tools, materials, how to solder wires, and safety measures you should employ.



Step 1: Tools and Materials



Electronics Equipment Assembly Workplace

Fig 1: Electronics Equipment Assembly Workplace



Here’s a list of basic tools and materials you will need for most of your soldering projects.

  • Solder iron and iron tips
  • Soldering station
  • Brass or conventional sponge
  • Soldering iron stand
  • Soldering wire
  • Heat gun
  • 63/37 leaded solder
  • Helping hands/ third hands
  • Wire stripper
  • Safety goggles
  • Rosin flux

Special Offer: Get $100 off your order!

Claim your $100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

Step 2: Splicing Your Wires



Using a Wire Stripper

Fig 2: Using a Wire Stripper



  • First, strip 1-inch insulation off the end of the wires you need to solder using a wire stripper. You can also use a utility knife.
  • Second, slide a heat-shrink tubing over 2 inches or 5.1 cm onto one of the wires. Also, ensure that the heat-shrink tubing is a gauge larger than your wire’s insulation diameter.
  • Third, twist the end of the electrical wire together to bind them. At the same time, ensure that the strands of wire ends don’t stick up. Your splice should be even on both sides for a solid connection while soldering.
  • Fourth, use alligator clips to clamp the wires, hold them firmly, and keep them from the work surface.
  • Finally, apply rosin flux to the spliced wires to keep the solder together.



Step 3: Applying the Solder



Bonding Two Wires with a Solder Joint

Fig 3: Bonding Two Wires with a Solder Joint



Here is a step-by-step guide to selling your connections, plus some soldering iron tips.

  • For a start, acquire a 63/37 (63% tin and 37% lead) solder. It has a relatively lower melting point of 361 °F (183 °C).
  • Wear safety goggles to safeguard your eyes and turn on the soldering iron.
  • Once the soldering iron is hot, apply some hot solder onto its tip to prevent oxidation.
  • The process is called tinning and helps the soldering iron heat up evenly.
  • Also, heat the rosin flux by placing your soldering iron against the bottom of the splice.
  • Add solder to hold the splice together once the flux melts or starts bubbling.
  • Next, move the solder’s tip along the top of the wires so that it melts into them. For this step, keep the soldering iron on the bottom of the splice.
  • Continue melting until you uniformly cover the exposed splice with solder creating a permanent bond.
  • Finally, leave the solder to cool for one to two minutes to solidify and avoid circuit failure.



Step 4: Sealing the Connection

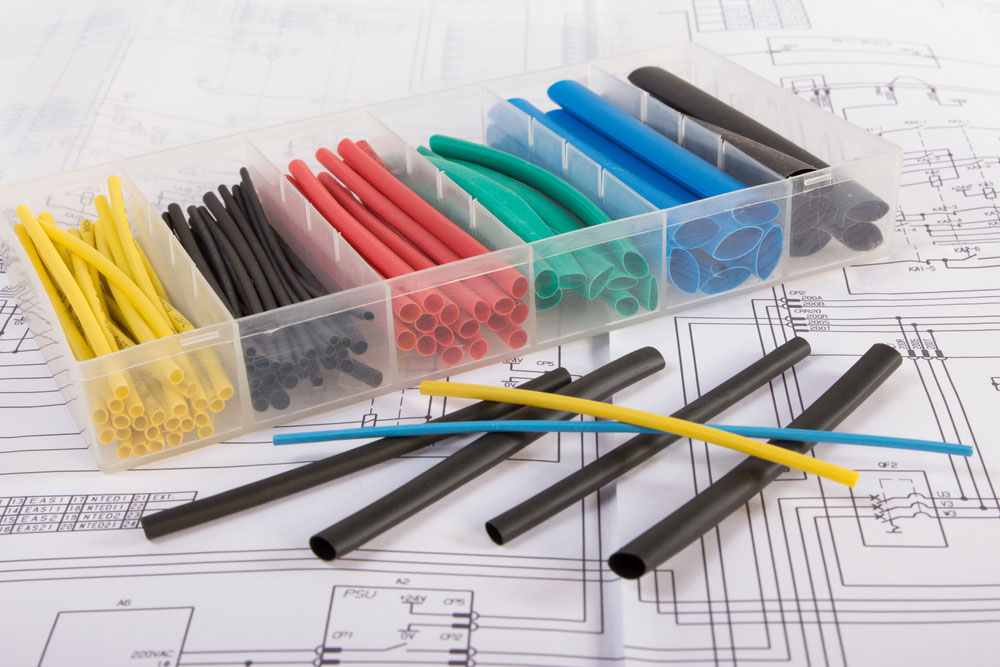

Heat Shrink Tubing

Fig 4:Heat Shrink Tubing



The third and final step involves sealing the connection to prevent electrocution or short circuits that result from exposed wires.

Here are the steps you should employ to seal the connection.

  • First, cover the soldered wire with silicone paste to make it waterproof.
  • Second, slide the heat-shrink tubing over the soldered wires. Ensure it goes over the insulation by a minimum of 0.64 cm or ¼ inch. You can also use electrical tape.
  • Third, shrink the tubing over the soldered wire by heating it using a heat gun. Only stop applying the heat when the heat-shrink tubing holds the wire tightly.
  • Next, remove excess silicone paste from the tubing sides using a paper towel for a clean solder joint.
  • Finally, confirm if you have a strong mechanical bond.



Warnings

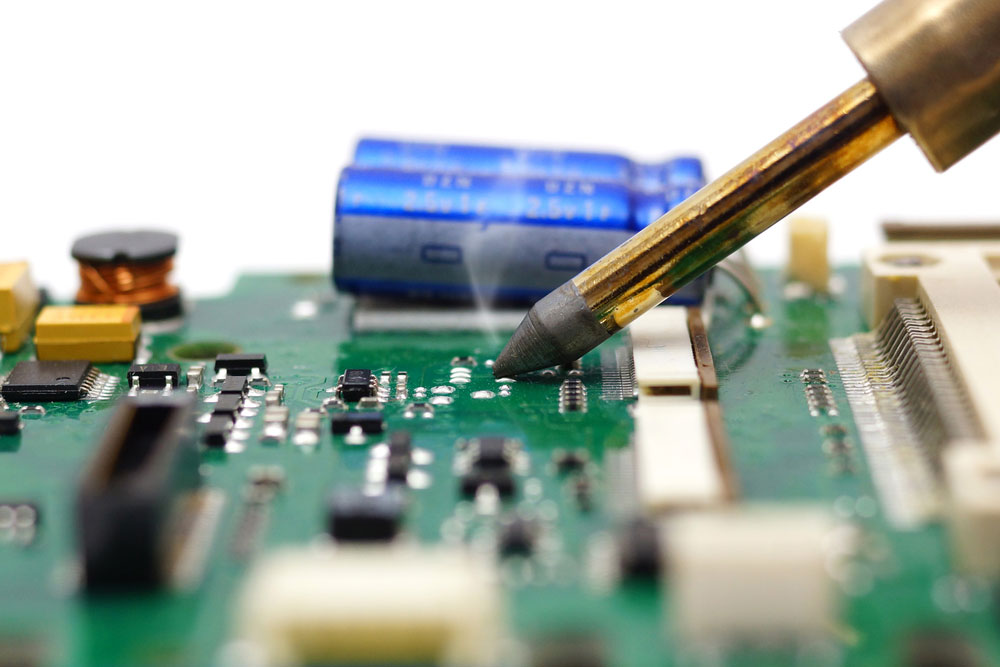

Electrical Engineer Is Soldering on Printed Circuit Board

Fig 5: Electrical Engineer Is Soldering on Printed Circuit Board



  • Please don’t touch the soldering iron while it’s hot; you may suffer from burns.
  • Don’t breathe in fumes from the solder, as they can be harmful and toxic.
  • Work in a well-ventilated area to allow for sufficient air circulation. Sometimes, the solder fumes can build up to toxic levels.
  • Lead is poisonous; hence wash your hands thoroughly after handling leaded solder.



Conclusion



Soldering is a requirement if you’re dealing with electronic circuit board projects.

And, whether you like it or not, it takes time to perfect the skill. Go over what we’ve covered in today’s article, and you’ll be good.

Finally, for any inquiries, questions, or comments, feel free to contact us.

We’ll get back to you as soon as we can.
