Detecting the presence of human beings is a critical function required for several applications in the modern world. And the human presence sensor is at the heart of this function. So if you have a project requiring human detection, we have covered this topic in detail below to help you get started. Take a look!

Special Offer: Get $100 off your order!

Claim your $100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

What is Human Presence Detection?

Human presence detection defines a range of methods and technologies that can sense and detect the presence of a human body in an area of interest. It could also mean software or hardware technologies for detecting people to verify or authenticate them to access smartphones, computers, etc.



A vector illustration showing how a human detection sensor controls lights and AC

A vector illustration showing how a human detection sensor controls lights and AC



Unlike human sensing, human presence detection primarily helps with security or safety by identifying the human. The software versions include technologies like CAPTCHA and reCAPTCHA.

But hardware technologies for human presence sensors include the following.

  • Radar technology
  • Security switch
  • Image recognition
  • Fingerprint sensors
  • Acoustic sensors
  • Infrared motion sensors
  • Vibration sensors



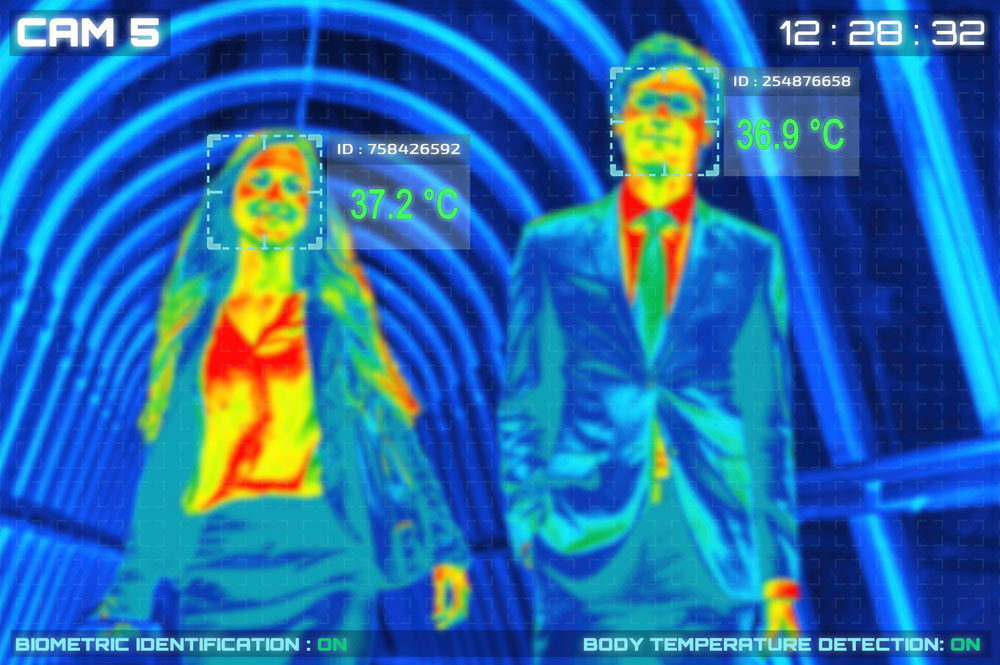

A simulation of body temperature checking using an IR sensor

A simulation of body temperature checking using an IR sensor

Special Offer: Get $100 off your order!

Claim your $100 discount by sending an inquiry today. Act now to save on your next project!
Please email [email protected] for details.

Why You Need Human Presence Detection

Detecting human presence has several applications and benefits. We will highlight two examples to show how you can use the technology.

In Computers

Dell built an ExpressSign-In feature into the Latitude 7200 model based on Context Sensing Technology from Intel. Combined with Windows Hello and an infrared sensor, the technology gave users instant, touch-free logins into the laptop when on standby mode.

And this tech will keep the laptop awake as long as it detects your presence. But it will lock the device after a preset time when you walk away. It is vital to note that the human presence context sensor only senses if there's someone there. It can't tell who is there. This task falls on the Window Hello infrared camera.

This technology gives a high level of security if you work in an office or a public setting. Additionally, it offers convenience and might conserve battery life by locking the laptop quickly to enter hibernation mode.

At Home

Radar sensors installed in the home can sense multiple activity states, such as action during sleep or rest. So it can detect a human sleeping to turn off the lights to increase energy efficiency. Also, it can close the curtains and turn off the AC after sensing deep sleep. These units often have light sensors to detect changes in indoor lighting.



A radar sensor for a vehicle

A radar sensor for a vehicle



On the security aspect, you can use the same microwave radar technology to detect intrusion, then send an alarm and record the event.

Configuring the AK9753 Human Presence Sensor with Arduino

Infrared motion sensors can detect human movements and the presence of any other infrared object. We will use the AK9753 human presence sensor in this project. It features four infrared sensors and an integrated circuit for characteristic compensation, so you can use it to detect an IR object's motion and the relative position of its movement.



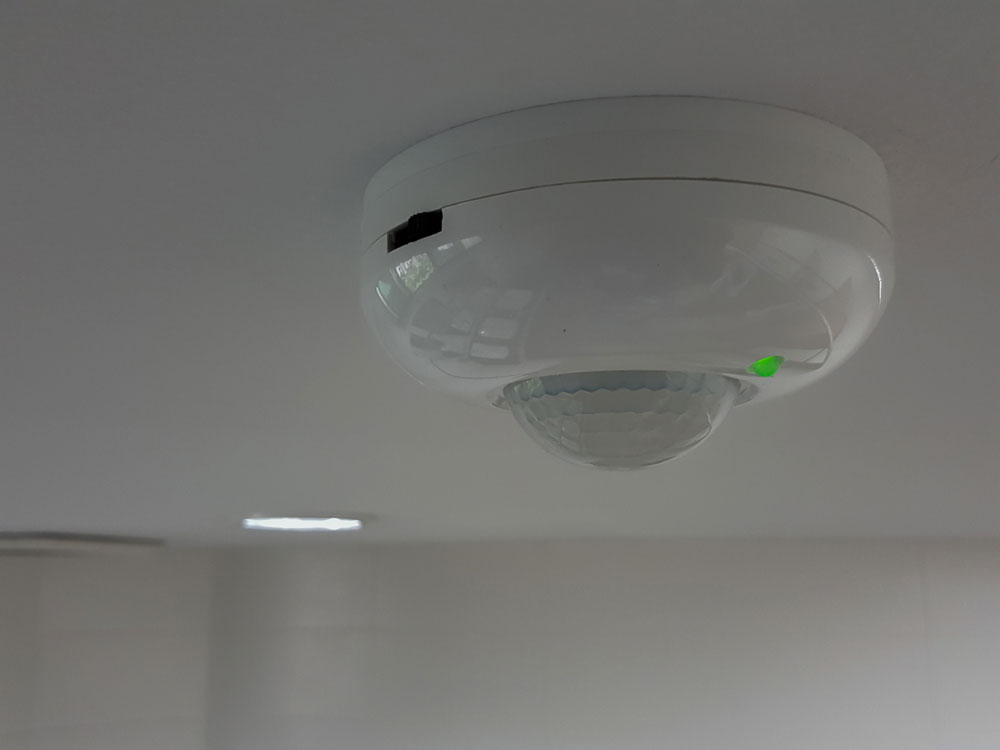

An infrared motion sensor is mounted on the ceiling.

An infrared motion sensor is mounted on the ceiling.



Also, it has an integrated analog-to-digital converter that provides 16 bits of digital data output to the I2C bus. Other features include the following.

  • Low power (current) consumption
  • Interrupt function
  • Integrated temperature sensor

AK9753 Specifications

Factor Value
Operating Voltage 3.3V or 5V
Interface I2C
I2C Address 0x64 (default), 0x65 & 0x67 (both configurable)
Spectral Sensitivity 5-7 μm (5V)
Human Presence Detection Range 3 meters max (at 5V)
Power Consumption 10 μA (typ.), 100 μA (max) (5V)
IR Control Output Resolution 16 bit
Operating Temperature -30°C to 85°C
Temperature Measurement Range -10°C to 60°C

AK9753 Pinout

Pin Function Direction
SCL I2C serial clock In
SDA I2C serial data In
VCC Power supply pin (you can use 3.3V or 5V) In
GND Connects the module to the system ground In
INT The interrupt pin goes high when data is ready, then pulls low after the data gets read Out

You can use addresses 0 and 1 to alter the board's I2C address if several devices use the same address. Here's how you can change these addresses based on the different opened and closed jumper combinations.

Address 0 Address 1 I2C Address
0 0 0x64
0 1 0x65
1 0 0x67
1 1 Switch Mode

If you don't want to use I2C, use the switch mode.

What You Need

  • Seeeduino V4.2
  • Base Shield
  • AK9753 human presence sensor

Connections

Connect the AK9753 sensor to the I2C port of the base shield. Next, plug the base shield into the Seeeduino board, then plug in the Seeeduino MCU to your computer using a USB cable.

If you don't have a base shield, you can connect the sensor to Seeeduino directly using cables, as shown below.

Seeeduino AK9753 Sensor Cable
GND GND Black
3.3V or 5V VCC Red
SCL SCL Yellow
SDA SDA White

Fiber Optic Cable Assembly: Coding

Download the Grove - human presence sensor library and install it into Arduino. You will find four demos, the first one being for the sensor. This demo has the following example projects.

  • Basic Readings: This code reads the raw data from the four sensors in the module, then displays them in serial
  • PlotDiff: This one reads raw data and then plots the readings in a serial plotter
  • Detect Presence: As the name suggests, this code detects the presence of an IR object.
  • Plot Movement: This code detects motion and then plots it in the serial plotter

Choose the demo code you want, then upload it to Seeeduino.



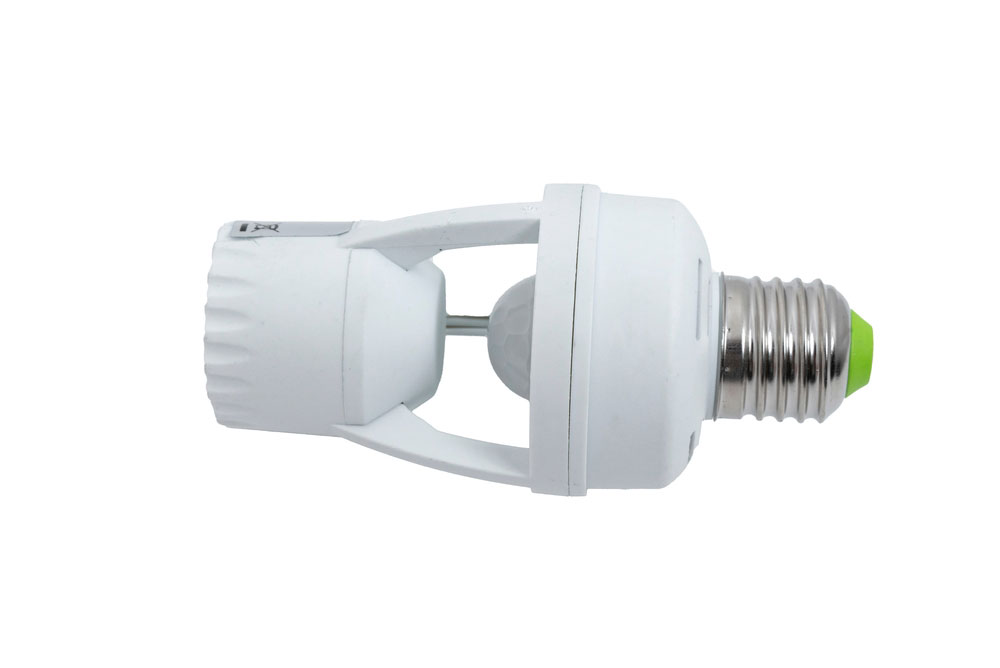

Fiber Optic Cable Assembly: An infrared motion sensor

An infrared motion sensor



Fiber Optic Cable Assembly: Basic Readings Output

Open the serial monitor and set the baud rate to 9600. You will get results in an array format showing measurements from the four sensors. These values will range from -32767 to 32767 and reflect the detected IR light intensity. A high value means more intense IR light.

Since there is a built-in temperature sensor, the readings will include heat measurements. The last part is the millisecond (ms), which shows the elapsed time (response time) since the program started.

Fiber Optic Cable Assembly: PlotDiff Output

Instead of displaying the sensor output as raw data, this code converts the readings to current. After that, it plots the difference between IR sensors 1 & 3 as a blue line (IR1-IR3). Also, it draws a red line to show the difference between IR2 and IR4 (IR2-IR4). Remember to set the baud rate to 9600.



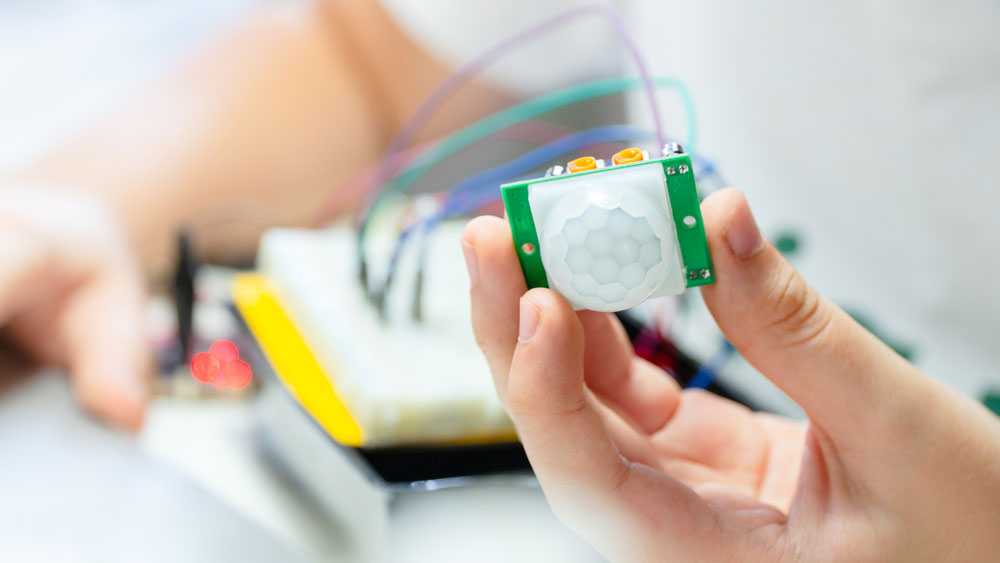

Fiber Optic Cable Assembly: A project with a PIR sensor to test motion detection

A project with a PIR sensor to test motion detection



Detect Presence Output

This program uses the derivative of the sensor value for detection. If this derivative exceeds the threshold, an IR object is within the sensor's range. The output shows the readings of all four sensors, with an O meaning no detection and an X meaning IR object detected. Consider the following result.

X O O O

It means the first sensor detected an object, but the other three did not.

Fiber Optic Cable Assembly: Plot Movement Output

This code uses the derivative of the difference value between IR1 and IR3 or IR2 and IR4. It displays four color-coded curves that mean the following.

  • Blue curve: Difference between IR1 and IR3
  • Green line: Difference between IR2 and IR4
  • Red line: Movement in the direction 1-3 (a derivative of IR1 and IR3). A positive pulse means movement from 1 to 3, while a negative one implies movement from 3 to 1.
  • Orange line: Movement in the direction 2-4 (a derivative of IR2 and IR4). A positive pulse means movement from 2 to 4, while a negative one implies movement from 4 to 2.



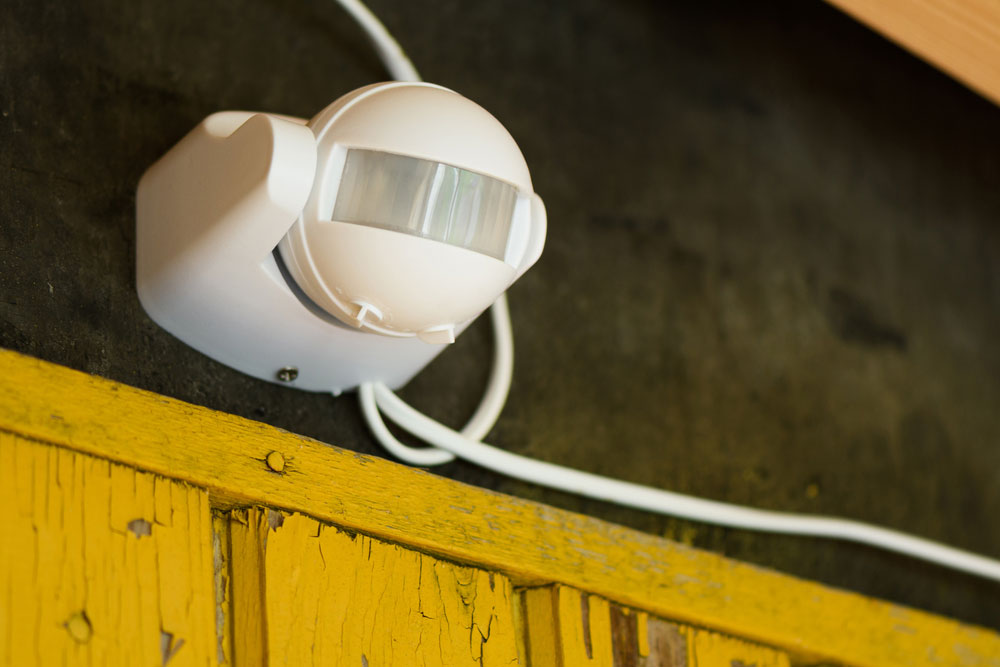

Fiber Optic Cable Assembly: A motion detector sensor for a security system

A motion detector sensor for a security system

Wrap Up

In conclusion, human presence sensors are critical devices for security applications, conserving energy in buildings, etc. And you can group them with other sensing units to create a smart sensor package to secure homes and devices. That's it for this article. Contact us if you have any questions or need further assistance.
