Cable Length Types for Assembly Wiring Harnesses | How to Choose the Right Length for Your Build

Cable length is one of the easiest details to underestimate in a wiring harness assembly. A harness can have the right connectors, wire gauge, insulation, shielding, and pinout, but if the length is wrong, the assembly may be difficult to install, hard to service, or vulnerable to stress near the connector. In wiring harness design, "length" doesn't refer to one measurement. It can mean cut length, finished length, branch length, slack for service, or the routed length needed to pass through an enclosure, machine, vehicle, or printed circuit board (PCB) assembly.

Key Takeaways

• Cable length in a wiring harness can refer to cut length, finished length, branch length, service loop length, exposed lead length, routed length, and more.
• The correct length depends on connector position, bend radius, routing path, service access, strain relief, and environmental conditions.
• A harness that is too short can place stress on terminals, connectors, seals, and solder joints.
• A harness that is too long can create abrasion, vibration, routing, electromagnetic interference (EMI), and installation problems.
• The best harness drawings define measurement points, tolerances, branch locations, bend radius, slack, labels, and protective coverings clearly.

What does Cable Length Mean in a Wiring Harness?

Cable length in a wiring harness is the measured or controlled distance between electrical connection points, but the exact meaning depends on the stage of design or manufacturing.

For example, an engineer may specify the finished length between two connectors. A production team may work from the cut length before stripping and crimping. An installer may care about the routed length after the harness passes through clamps, channels, brackets, panels, or equipment.

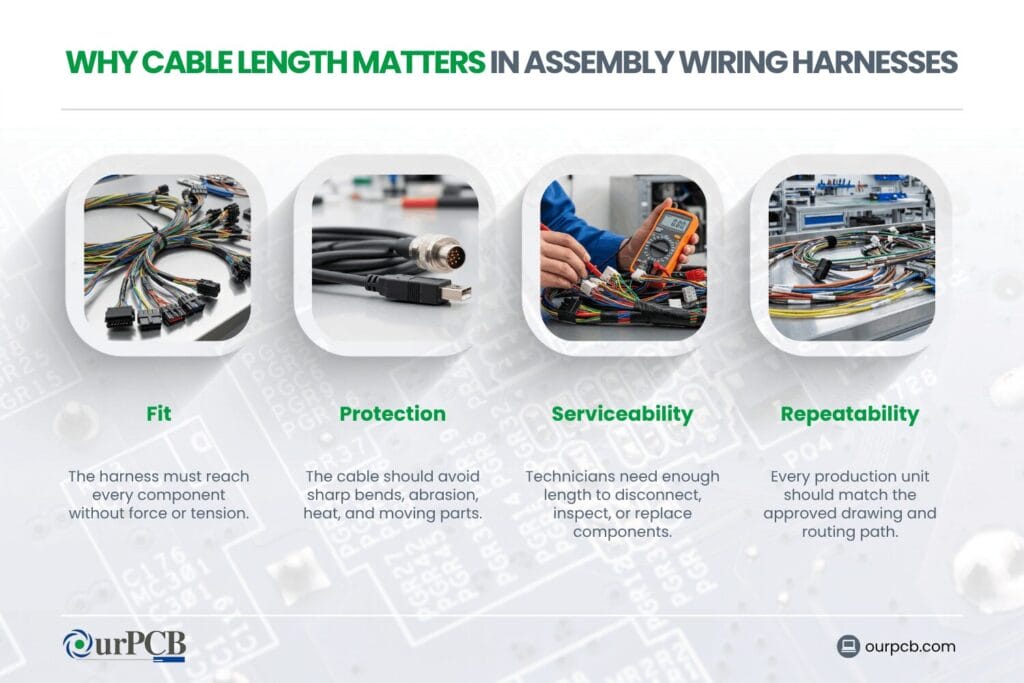

Why Cable Length Matters in Assembly Wiring Harnesses

Cable length affects how a harness performs mechanically, electrically, and practically. The right length needs to balance four priorities:

• Fit: The harness must reach every component without force or tension.
• Protection: The cable should avoid sharp bends, abrasion, heat, and moving parts.
• Serviceability: Technicians need enough length to disconnect, inspect, or replace components.
• Repeatability: Every production unit should match the approved drawing and routing path.

Mismanaging any creates downstream problems; getting all four right ensures clean installation, reliable performance, and long-term serviceability.

Main Cable Length Types for Wiring Harness Assembly

Wiring harness specifications use several length terms, each describing a specific measurement point or design consideration. The table below outlines the 15 most common types you'll encounter on drawings and in production.

1. Overall harness length

Overall harness length is the full end-to-end length of the completed harness or cable assembly. You usually measure it between defined connector points, terminal ends, housing faces, or other drawing datums.

This length is important for simple point-to-point cable assemblies and larger harnesses that connect major system sections.

2. Cut length

Cut length is the raw length of wire or cable before assembly operations such as stripping, crimping, and terminal insertion.

This is mainly a manufacturing length. It helps production teams prepare wires before they become part of the finished harness. For example, a wire with a 300 mm finished route may need a different cut length depending on how it is terminated and routed. For this reason, cut length and finished length should not be treated as the same thing unless the drawing makes that clear.

3. Finished assembly length

Finished assembly length is the final length after the harness has been built. It accounts for connectors, terminals, and strain relief, plus sleeving, tape, heat shrink, branches, breakouts, and forming.

This is often the most important length for inspection because it confirms whether the delivered harness matches the design.

4. Branch length

Branch length is the distance from the main trunk of the harness to a connector, terminal, sensor, switch, actuator, LED, PCB, or other device.

Many wiring harnesses are not simple, straight cables. They have a main trunk with several breakout branches. Each branch needs its own length because each connection point may sit in a different location.

Branch length is especially important in:

• Automotive harnesses
• Control panels
• Industrial machinery
• Medical devices
• Consumer electronics
• Appliances
• Robotics
• Battery and power distribution systems

5. Breakout length

At the breakout, one or more wires separate from the main harness bundle.

This length is closely related to branch length, but it focuses more on the transition point. A poor breakout design can create stress where wires leave the bundle, especially if the harness is bent, tied, taped, or clamped too close to the branch.

6. Exposed lead length

This length is common in pigtails, field wiring, panel wiring, grounding leads, and open-ended cable assemblies. Exposed lead length matters because installers often need enough wire to strip, terminate, solder, crimp, or connect to a terminal block. However, too much exposed wire can make the harness harder to dress and protect.

7. Pigtail length

Pigtail length is the length of a free wire or cable tail used for connection during installation. A pigtail may come out of a molded connector, sensor, PCB module, power supply, control box, battery pack, or enclosure. It gives the installer a flexible connection point when a fixed connector is not ideal.

8. Service loop length

Technicians rely on service loops – a controlled amount of extra cable that allows them to disconnect, move, inspect, or replace a component without pulling on the wire termination.

This differs from random slack. A service loop should be planned, located, and supported. A service loop is especially helpful when a connector needs to be unmated during repair. Without extra length, the technician may be forced to pull on the harness, which can damage crimps, seals, solder joints, or connector housings.

The design should specify:

• Loop location
• Loop size
• Bend radius
• Tie or clamp position
• Whether the loop is inside or outside an enclosure
• How the loop should sit after installation

9. Slack length

Slack length is the extra length included to prevent strain during installation, movement, thermal expansion, vibration, or service.

Slack is useful, but it must be controlled. Too little slack creates tension. Too much slack creates routing problems.

10. Drip loop length

A drip loop is a downward loop in the cable that helps prevent water from rushing into a connector, enclosure, or device. Drip loops are useful for outdoor, marine, vehicle, agricultural, industrial, and exposed equipment applications. A drip loop should be long enough to guide water away from the connection point, but not so long that it swings, rubs, or violates bend radius requirements.

11. Embedded length

Embedded length is the portion of wire or cable that disappears inside a connector, housing, splice, molded section, ferrule, grommet, strain relief, or enclosure.

This length may not be visible after assembly, but it still affects the wire length calculation. If the embedded length is ignored, the finished harness may come out shorter than expected.

12. Bend allowance

Cables that follow bends instead of a straight line need extra length, known as bend allowance. A harness routed around corners, clamps, hinges, brackets, PCB edges, or enclosure walls needs enough length to maintain a safe bend radius.

Bend allowance is important because forcing a tight bend can damage:

• Copper conductors
• Insulation
• Shielding
• Coaxial cable geometry
• Twisted pair performance
• Connector exits
• Strain relief areas

Bend allowance becomes especially important in compact electronics where cables must fit inside tight enclosures.

13. Routed length

The actual path a harness follows through a product or system is its routed length. This may be longer than the straight-line distance between two points. A cable may need to route around a PCB, avoid heat-generating components, pass through clips, follow a frame rail, or stay separated from high-voltage or high-noise circuits.

For complex products, a 3D harness model or physical prototype can help confirm routed length before production.

14. Electrical length

Electrical length is important in signal-sensitive cable assemblies where performance depends on more than physical distance.

In these assemblies, the length may affect signal timing, phase, impedance, insertion loss, skew, and noise performance. Two cables that look similar physically may behave differently if their internal construction or routing changes.

For radio frequency (RF) and high-speed assemblies, length control should be paired with connector selection, shielding, impedance requirements, and testing.

15. Dynamic flex length

Dynamic flex length applies to harnesses that move during operation.

A dynamic harness needs enough length to move freely without stretching, kinking, rubbing, or bending too tightly. Support the cable so repeated motion doesn't concentrate stress at the connector. Dynamic flex applications may require special cable construction, finer stranding, flexible insulation, strain relief, and repeated bend testing.

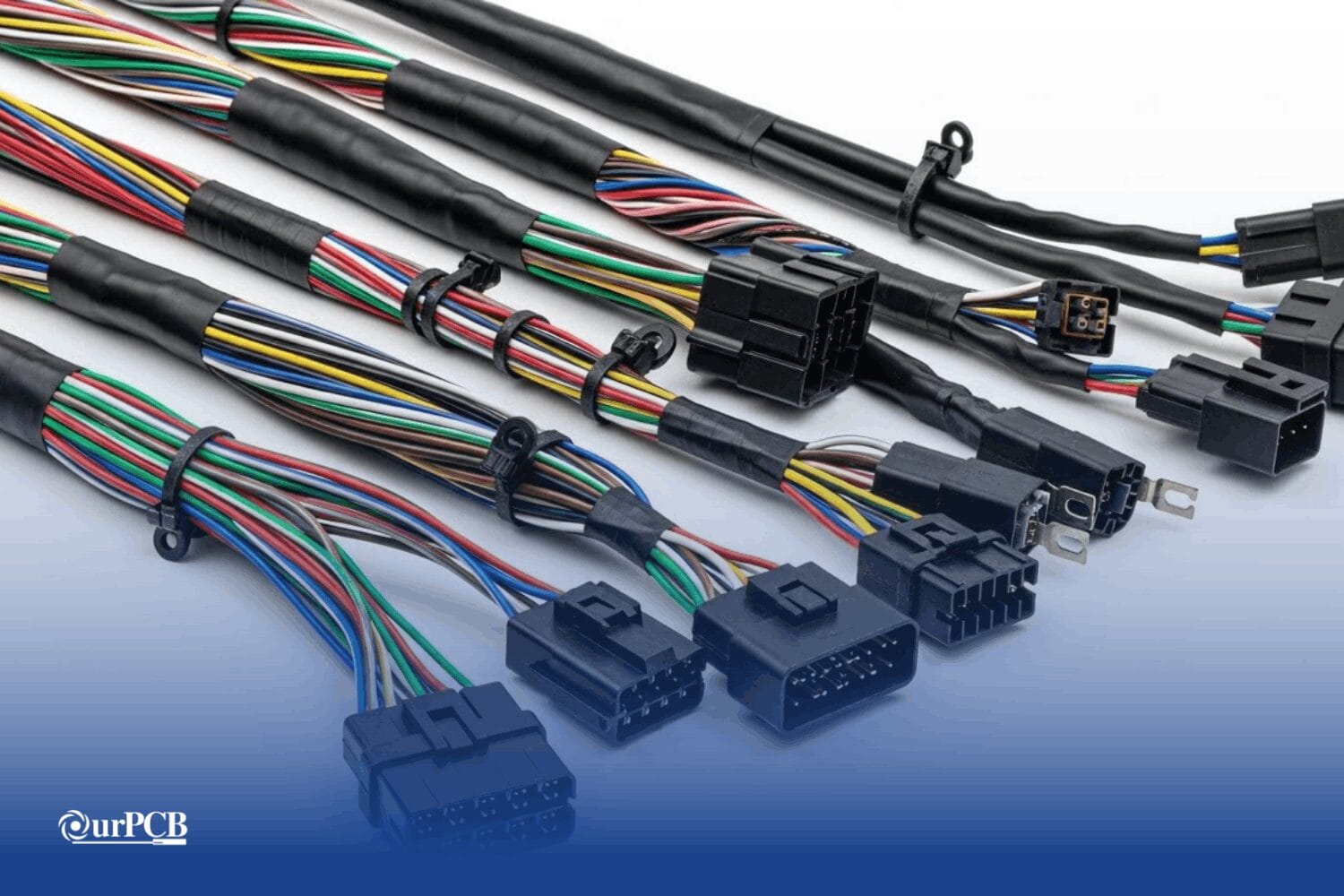

Cable Length Types by Application

Different harness applications require different length priorities.

Common Cable Length Mistakes to Avoid

Specifying only one length

Relying solely on overall length ignores critical dimensions like branch lengths, exposed leads, service loops, and routed paths, which all require separate consideration.

Ignoring connector orientation

A connector may physically reach the component, but if it points the wrong way, the cable may need to twist or bend sharply.

Forgetting bend radius

A straight-line measurement does not account for the space needed to bend safely around corners, brackets, or enclosure walls.

Adding too much slack

Extra cable may seem harmless, but uncontrolled slack can rub, vibrate, trap moisture, or interfere with moving parts.

Not adding enough service length

If there is no service loop, technicians may need to pull on the harness to disconnect a component.

Measuring from unclear points

A drawing should define whether length is measured from the connector face, rear shell, terminal end, cable jacket, housing edge, or another reference point.

Ignoring protective coverings

Sleeving, tape, conduit, and heat shrink can change the way the harness bends and fits.

Using tight tolerances without need

Overly tight tolerances can increase manufacturing cost without improving real-world performance. Critical lengths should be controlled tightly, while non-critical lengths can allow for practical variation.

Work With OurPCB for Custom Wiring Harness and Cable Assembly Manufacturing

Cable length decisions affect fit, reliability, serviceability, and production repeatability. At OurPCB, we manufacture custom wire harnesses, cable assemblies, hybrid cables, and PCB assembly solutions for electronics projects that need reliable interconnection from board to system.

If you need a wiring harness built to your drawings, connector requirements, and target application, contact OurPCB for a custom quote.

FAQs About Cable Length Types for Assembly Wiring Harnesses

What is the difference between cut length and finished length?

Cut length is the raw wire or cable length before assembly. The finished length is the final measured length after stripping, crimping, connector installation, sleeving, heat shrink, and other assembly steps.

What is branch length in a wiring harness?

Branch length runs from the main harness trunk to a connector or component – for example, a terminal, sensor, switch, actuator, LED, or PCB.

What is a service loop in a cable assembly?

A service loop is extra cable length placed near a connector or service point so a technician can disconnect, inspect, or replace a component without pulling on the wire termination.

How much slack should a wiring harness have?

A wiring harness should have enough slack to prevent strain, allow safe routing, and support servicing. It should not have so much slack that the cable rubs, vibrates, traps moisture, or interferes with moving parts.

Why does bend radius affect cable length?

Bend radius affects cable length because a cable needs extra distance to curve safely. A tight bend can damage conductors, insulation, shielding, or signal performance.
